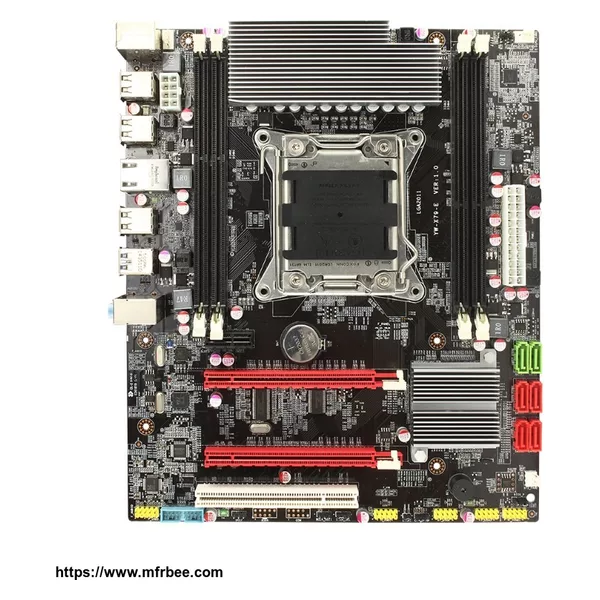

X79-E V1.0 parameter | |
CPU | Support LGA2011 slot using XEON series processor |
Chipset | Intel X79 |
Memory | Support DDR3 standard 1066/1333/1600 dual channel memory |
4* 240 pin DDR3 slot, a single memory capacity 8GB | |
Expansion slot | 2 * PCI Express x 16 graphics slot |
1 PCI Express x 2 | |
1 PCI, compatible with PCI2.3 | |
Integrated network card function | Integrated 10/100/1000M network card function |
sound card | Onboard HD AUDIO sound support 6 channel sound output |
SATA3.0Interface | 2 x Serial ATA3 port (the maximum transmission rate of 600MB/s) |
SATA2.0Interface | 4 x Serial ATA2 port (the maximum transmission rate of 300MB/s) |
I/O Interface | 1 RJ45 X network cable interface |
1 X Serial Port, UART 16550 high speed mode | |
4 X USB3.0 interface (of which 2 are pre) | |
12 X USB 2 interface (6 of which are front) | |
1 ps/2 keyboard interface | |
1 PS/2 mouse interface | |
Board size | 260mm X 220mm |
