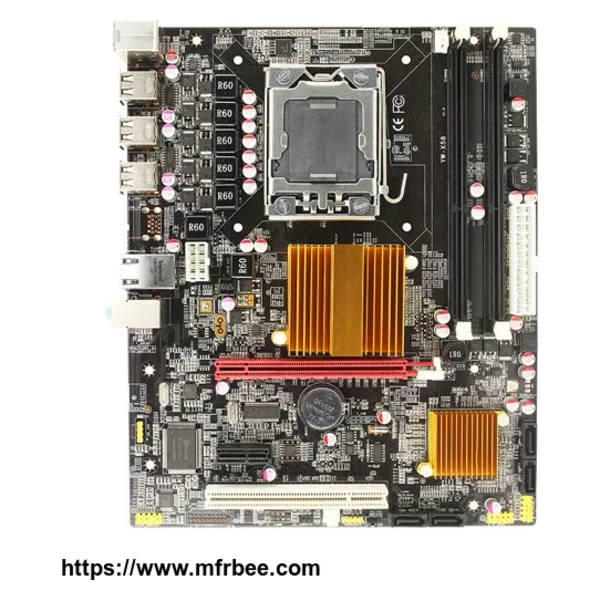

| X58 V1.0 parameters |
|
| CPU | Support LGA1366 slot using Xeon series processor |
|
|
| chipset | Intel X58+ICH10 |
| Memory | Support DDR3 standard 1066/1333/1600 dual channel memory |
| 2 *240 pin DDR3 slot, a single memory capacity 8GB |
| Expansion slot | 1 a PCI Express x16 graphics slot |
| 1 PCI Express x2 |
| 1 PCI，compatible PCI2.3 |
| Integrated network card function | Integrated 10/100/1000M network card function |
| sound card | Onboard HD AUDIO sound support 6 channel sound output |
| SATA Interface | 4 x Serial ATA2 port (the maximum transmission rate of 300MB/s) |
| I/O Interface | 1 RJ45 X network cable interface |
| 1 X Serial Port, UART 16550 high speed mode |
| 4 X USB3.0 interface (of which two are pre) |
| 8 X USB 2 interface (two of which are front) |
| 1 ps/2 keyboard interface |
| 1 PS/2 mouse interface |
| Board size | 240mm X 195mm |
