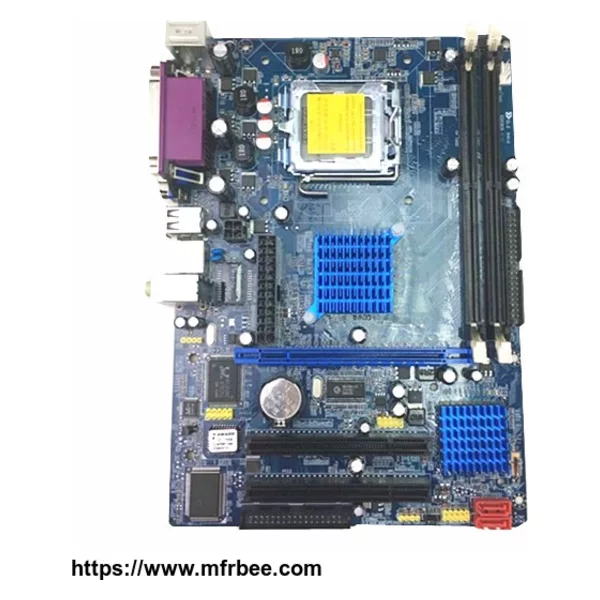

Computer Motherboard 945GC DDR2 LGA775
Product sourcing details
- Place of Origin
- China
- Packaging
- 20 pcs each box
Supplier: ShenZhenYanWeiComputer Co.,LTD
Purchasing information
- Minimum order
- 100
- Lead time
- 15 Days
Please confirm with the supplier: Model / reference, Key specifications / compatibility, Samples, Export markets, Supply capacity.
Specifications
| CPU | Support FSB 533/800/1066 CPU |
| Support Intel Pentium HT(Hyper Threading Technology)CPU | |
| Support Intel Conroe-L Socket775 CPU | |
| Support Intel Pentium 4 Socket775 CPU | |
| Support Intel Celeron D Socket775 CPU | |
| Support Intel Core 2 DUO Socket775 CPU | |
| Chipset | Intel 945GM + ICH7 |
| integrated graphics | Built-in Intel Graphics Media Accelerator 950 |
| Memory | Support DDRII 533/667/800 single / dual channel memory standard |
| Provides 2*240 pin DDRII slots, memory up to 4GB | |
| Expansion slot | 1 x PCI Express x4/16Graphics accelerator slot |
| 2 X PCI， compatible PCI2.2 | |
| Integrated network card function | The motherboard integrated RT8105E card |
| sound card | Onboard Audio sound |
| IDE Ports | 1 X IDE channel can connect 2 IDE devices, support UDMA66/100/133 |
| SATA Ports | 2X Serial ATA2 ports（Maximum transmission rate 300MB/s） |
| I/O Ports | 1 x RJ45 Network interface |
| 1 X Serial Port， high speed 16550 UART mode compatible | |
| 1 X Parallel Port,Support EPP/ECP/SPP transfer | |
| 4 x USB interface, compatible with USB 2 .0 | |
| 1 PS/2Keyboard interface | |
| 1 PS/2 Mouse interface | |
| Main board size | 239MM X 176MM |
- Company: ShenZhenYanWeiComputer Co.,LTD
- Country: China (Mainland)
- Market: Southeast Asia，Europe
- Founded Year: 2012
- Address: 63#Building 1bell house road,Banan.ShenZhen.Guangdong.China
- Contact: Peng jinlei
