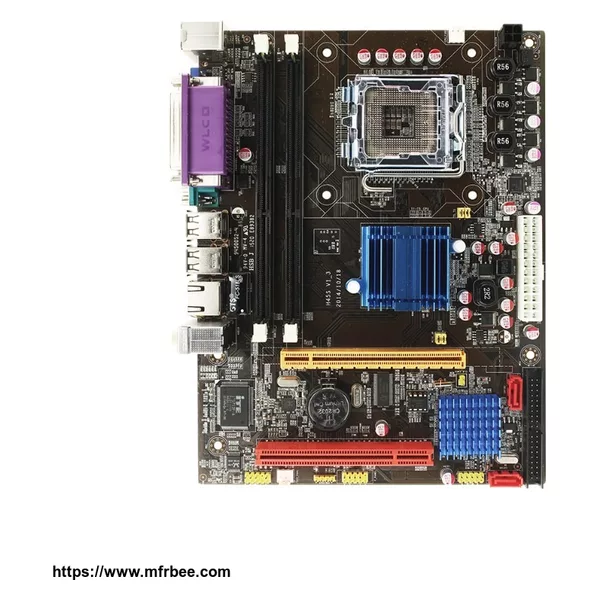

Motherboard GS45 DDR3 LGA775
Product Quick Detail
- Minimum Order
- 100
- Place Of Origin
- China
- Packaging
- 20 pcs each box
- Delivery
- 15 Days
Specifications
| 775CPU | Support FSB 800/1066/1333 CPU |
| Support Intel Celeron M CPU | |
| Support Intel Core 2 Duo Socket775 CPU | |
| Support Intel Core 2 Quad Socket775 CPU | |
| Chipset | Intel GS45 + ICH9 |
| integrated graphics | Integrate Intel® Graphics Media Accelerator X4500 |
| memory | Support DDR3 1333/1066 dual channel memory, standard |
| 2 *240 pin DDR3 slot, one can support up to 4GB | |
| Expansion slot | 1 PCI Express x16 graphics slot |
| 1 PCI, compatible with PCI2.3 | |
| Board network card | Integrated RTL8105E card |
| The onboard HA AUDIO sound | Support 6 channel cinema sound output level |
| IDE port | Provide 1 IDE interface |
| Support ultra ata66/100/133 synchronous DMA mode | |
| SATA port | Provide 2 sets of support more than 1t hard disk SATA port |
| I/O PORTS | 1 x serial port, UART 16550 high speed mode |
| 1 x parallel port, support epp/ecp/spp transmission | |
| 1 RJ45 x interface card | |
| 4 x USB interface, compatible with USB 2 .0 | |
| 1 ps/2 keyboard interface | |
| 1 ps/2 mouse interface | |
| Main board size | 230MM X 173MM |
- Country: China (Mainland)
- Business Type:
- Market:Southeast Asia，Europe
- Founded Year:2012
- Address:63#Building 1bell house road,Banan.ShenZhen.Guangdong.China
- Contact:Peng jinlei
