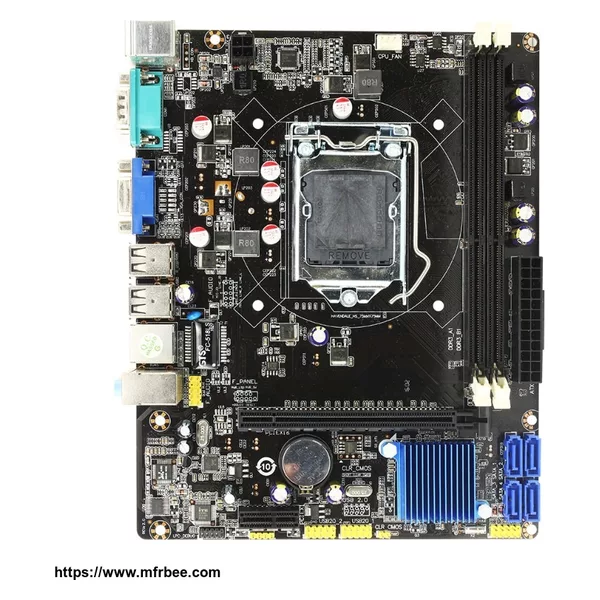

| H61 parameters |
|
| CPU | |
|
| Intel socket 1155 supports the second generation Pentium g/core i3/i5/i7 processor |
|
|
| chip set | Intel H61 |
| integrated graphics | Support Multi-VGA output |
| memory | Support DDR3 800/1066/1333 dual channel memory standard |
| 2 *pin 240 DDR3 slots, one can support up to 4GB |
| expansion slot | 1 PCI ExpressX16 graphics acceleration slot |
| 1 PCI Express x1 |
| Integrated network card function | Integrated 10/100/1000M network card function |
| sound card | Onboard audio HD Audio |
| |
|
| SATA pors | 4 x SATA2 port (maximum transfer rate 300MB/s) |
| I/O ports | |
| 1 X Serial Port, UART 16550 high speed mode |
| 1 RJ45 X network cable interface |
| 4 X USB 2 interface |
| 1 ps/2 X keyboard interface |
| 1 PS/2 X mouse interface |
| Main board size | 211MM X 168MM |
