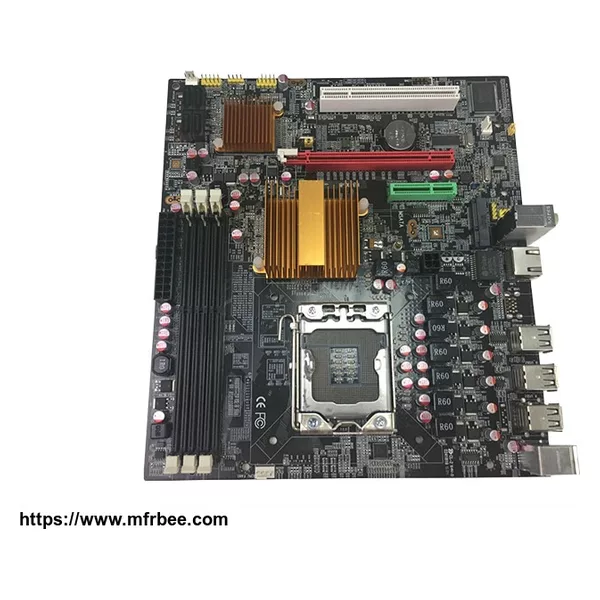

| X58 V2.0 |
|
| CPU | Support LGA1366 slot using XEON series processor |
|
|
|
|
| Chipset | Intel X58+ICH10 |
| Memory | Support DDR3 standard 1066/1333/1600 dual channel memory |
| 3 *240 pin DDR3 slot, a single memory capacity 8GB |
| Expansion slot | 1 PCI Express x16 graphics slot |
| 1 PCI Express x4 |
| 1 PCI, compatible with PCI2.3 |
| Integrated network card function | Integrated 10/100/1000M network card function |
| sound card | Onboard HD AUDIO sound support 6 channel sound output |
| |
|
| SATA interface | 4 x serial ATA2 port (the maximum transmission rate of 300mb/s) |
| I/O interface | 1 RJ45 x network cable interface |
| 1 X Serial Port, UART 16550 high speed mode |
| 1 x eSATA (external SATA interface) |
| 8 x USB 2 interface (of which 2 for the front) |
| 1 ps/2 keyboard interface |
| 1 ps/2 mouse interface |
| Board size | 244mm X 220mm |
