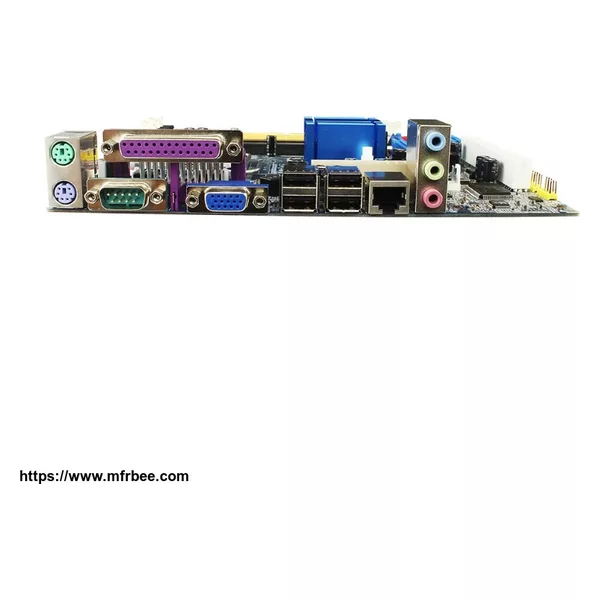

Motherboard G31 DDR2 LGA775
Product sourcing details
- Place of Origin
- China
- Packaging
- 20 pcs each box
Supplier: ShenZhenYanWeiComputer Co.,LTD
Purchasing information
- Minimum order
- 100
- Lead time
- 15 Days
Please confirm with the supplier: Model / reference, Key specifications / compatibility, Samples, Export markets, Supply capacity.
Specifications
| CPU | Support FSB 533/800/1066 CPU |
| Support Intel Pentium HT(Hyper Threading Technology)CPU | |
| Support Intel Conroe-L Socket775 CPU | |
| Support Intel Pentium 4 Socket775 CPU | |
| Support Intel Celeron D Socket775 CPU | |
| Support Intel Core 2 DUO Socket775 CPU | |
| chip set | Intel G31 + ICH7 |
| integrated graphics | Intel Graphics Media Accelerator 3100 |
| memory | 2 *240 pin DDRII slot, the memory can support up to 2GB |
| 2 *240 pin DDRII slot, supports up to 2GB memory | |
| expansion slot | 1 PCI Express x 16 graphics slot |
| 1 x PCI, compatible with pci2.2 | |
| Integrated network card function | The motherboard integrated rt8105e card |
| sound card | Onboard audio sound |
| IDE Ports | 1 X IDE channel can connect 2 IDE devices, support UDMA66/100/133 |
| SATA Ports | 4 X Serial ATA2 port (the maximum transmission rate of 300MB/s) |
| 1 X Serial Port, UART 16550 high speed mode | |
| 1 x parallel port, support epp/ecp/spp transmission | |
| 1 RJ45 x network cable interface | |
| 8 X USB interface, compatible with USB 2 (of which 4 for the front) | |
| 1 PS/2 keyboard interface | |
| 1 PS/2 mouse interface | |
| Main board size | 215MM X 170MM |
- Company: ShenZhenYanWeiComputer Co.,LTD
- Country: China (Mainland)
- Market: Southeast Asia，Europe
- Founded Year: 2012
- Address: 63#Building 1bell house road,Banan.ShenZhen.Guangdong.China
- Contact: Peng jinlei
