Table CNC Plasma cutting machine
Product Quick Detail
- Minimum Order
- 1
- Place Of Origin
- china
- Packaging
- wooden case
- Delivery
- 10 Days
Specifications

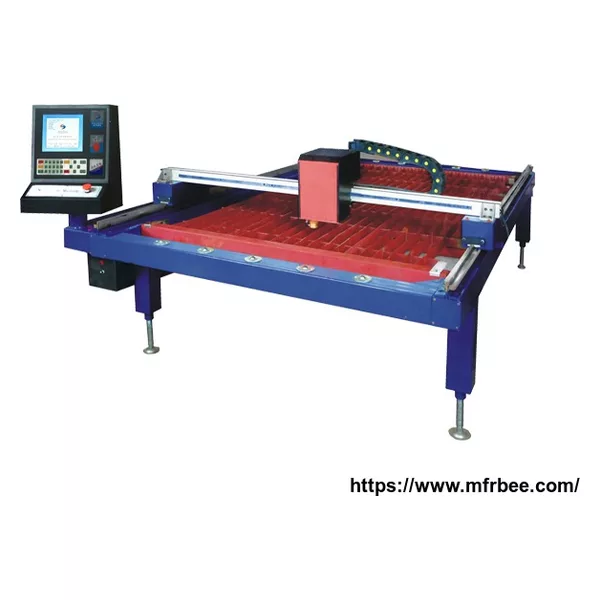

Machine as showed.This type is table-gantry type,dual drive,a plasma source of 60Amps included;Standard configuration:1.25m*2.5m and 1.25m*3.0m(2 models).
Main features:rapid cutting speed,high control accuracy,smooth edge, dross-free;Perfect for thickness less than5mm.
Main features:rapid cutting speed,high control accuracy,smooth edge, dross-free;Perfect for thickness less than5mm.
| Cross Beam Length(X axis) | 1.5m (can be lengthened according to user's demand) |
| Longitudinal Rail Length(Y axis) | 3m (Rail can be lengthened according to user's demand) |
| Effective Cutting Width (X axis) | 1.25m |
| Effective Cutting Length (Y axis) | 2.5m |
| Cutting Mode | Only Plasma |
| Drive Mode | Bilateral-side |
| Drive Method | Rack and pinion drive for X and Y axes |
| Plasma Cutting Thickness | 0.5-5mm |
| Plasma source | optional （60A） |
| Cutting Speed | 0-6000mm per minute |
| Moving Precision | 0.01mm per step |
| Power Source | 220V 50Hz 500-1000W |
| Nesting Software (option) | INTERGNPS, FASTCAM |
| Cutting Gas | Acetylene, Propane&Oxygen |
| Plasma Gas | Pressed air, Oxygen, N2 |
| Torch Height Control System | Pneumatic height control for plasma cutting |
- Country: China (Mainland)
- Business Type: CNC CUTTING MACHINE
- Market: worldwide
- Founded Year: 2002
- Address: Dahualing Industrial park, DongHu High-tech development district ,Wuhan City,Hubei Province,China
- Contact: Jason Yuan
