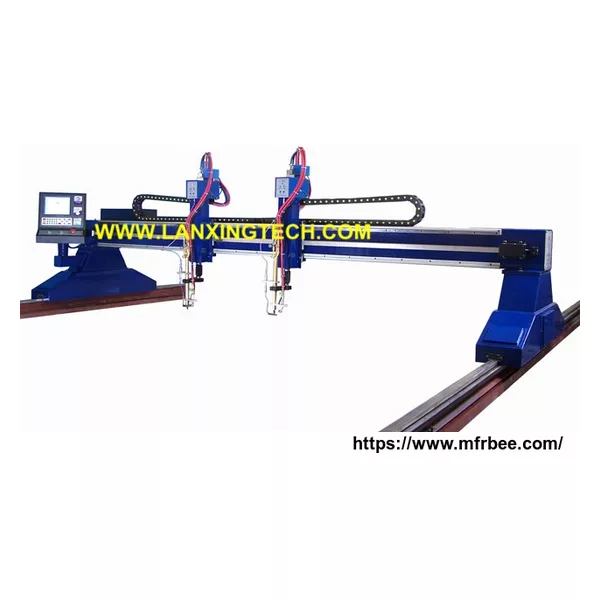

Small Gantry CNC cutting machine
Product Quick Detail
- Minimum Order
- 1
- Place Of Origin
- China
- Packaging
- wooden case
- Delivery
- 10 Days
Specifications
1. Dual drive
2. Stable running,good Configuration,high work efficiency,can be applied in cutting carbon steel,Mn-steel,stainless steel and so on
3. It can add additional cutting torches,or configurate both abnormality cutting &Strip cutting according to User Requirement
4. Auto Capacitive height control for flame cutting or Arc voltage height control for plasma cutting can also be configurated
Powerful CNC cutting machine Controller
1.Graphic display function
2.Break-point & power-cut restoration
3.Returning to reference point
4.Kerf compensation
5.Revolving
6.Mirror image
| Cross Beam Length(X axis) | 3m-4m (can be lengthened) | |
| Longitudinal Rail Length(Y axis) | 6m (Rail can be lengthened) | |
| Effective Cutting Width (X axis) | 2m-3m | |
| Effective Cutting Length (Y axis) | 4.5m(Rail can be lengthened) | |
| Cutting Mode | Flame only; Plasma only; Flame and Plasma | |
| Drive Mode | Bilateral-side | |
| Drive Method | Rack and pinion drive for X and Y axes | |
| Flame Cutting Thickness | 5-200mm | |
| Flame Cutting Material | Carbon Stainless, Alloy steel, Aluminium, Zinc etc | |
| Plasma Cutting Thickness | 1-60mm (according to the specification of plasma power source) | |
| Cutting Speed | 0-3500mm per minute | |
| Moving Precision | 0.01mm per step | |
| Power Source | 220V 50Hz 500-1000W | |
| Nesting Software (option) | INTERGNPS, FASTCAM | |
| Cutting Gas | Acetylene, Propane&Oxygen | |
| Plasma Gas | Pressed air, Oxygen, N2 | |
| Marking Tool | ||
| Torch Height Control System | CHC | Auto Capacitive height control for flame cutting |
| AVHC | Auto Arc voltage height control for plasma cutting |
