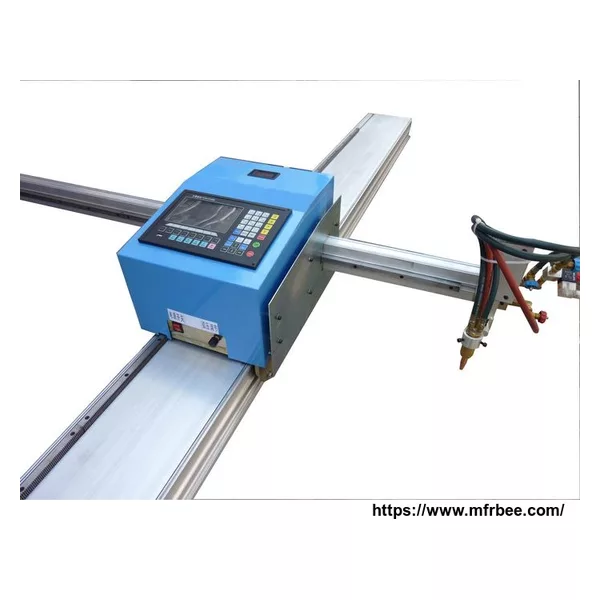

Portable CNC Profile Cutting machine

Minimum Order
1
Place Of Origin
China
Packaging
solid wooden case
Delivery
10Days
Machine as showed.Portable type,high efficiency,energy saving,light weight,most economical.
It is a movable type, which can be put on plate to cut;suitable for cutting carbon steel,stainless steel and other nonferrous metal plate of various thickness.

Main advantages:

1. Autoignition
2. Electric torch height controller
3. Flame/plasma cutting can be configurated

4. Smart cut,cut all shapes from AutoCad

5. Control system is SH2012AH,which is very popular in China,with large graphics library,and easy to learn to operate
This software can support English,Russian and Spanish

Powerful CNC cutting machine Controller

1.Graphic display function

2.Break-point & power-cut restoration

3.Returning to reference point
4.Kerf compensation

5.Revolving

6.Mirror image

Cross Beam Length(X axis) 1.8m
Longitudinal Rail Length(Y axis) 2.0 / 2.5 / 3.0 / 3.5m
Effective Cutting Width (X axis) 1.5m
Effective Cutting Length (Y axis) 1.5 / 2.0 / 2.5 / 3.0m(Can be lengthened)
Cutting Mode Flame/Plasma/Both Flame& Plasma
Drive Mode Single-side
Drive Method Rack and pinion drive for X and Y axes
Flame Cutting Thickness 5-200mm
Plasma Cutting Thickness 1-60mm (according to the specification of plasma power source)
Cutting Speed 0-3500mm per minute
Moving Precision 0.01mm per step
Power Source 220V 50Hz 500-1000W
Cutting Gas Acetylene, Propane&Oxygen
Gas Pressure Max. 0.1Mpa (14.5 PSI )
Oxygen Pressure Max. 1.0Mpa (145 PSI )
Plasma gas Pressed air, Oxygen, N2
Torch Height Control System Electric motorized torch height control for flame/plasma cutting
  • Country: China (Mainland)
  • Business Type: CNC CUTTING MACHINE
  • Market:worldwide
  • Founded Year:2002
  • Address:Dahualing Industrial park, DongHu High-tech development district ,Wuhan City,Hubei Province,China
  • Contact:Jason Yuan
