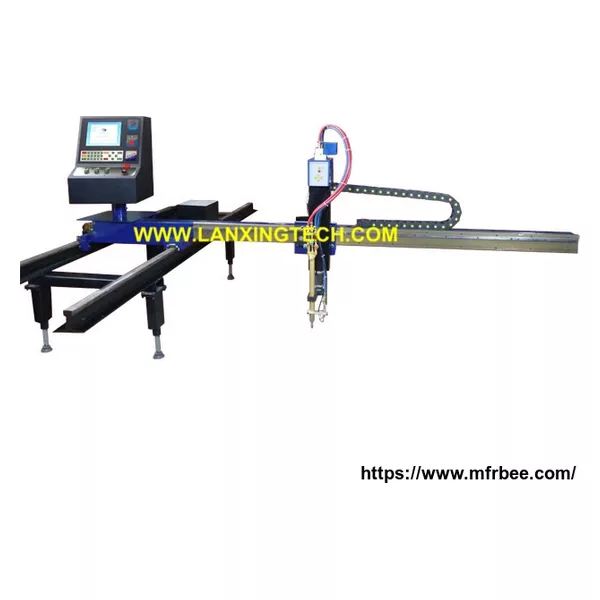

Cantilever CNC Profile cutting machine

Machine as showed.Cantilever structure, effective cutting width 2m,Rail length standard 3m,rail can be lengthened.
Main advantages:
1. Torch quantity can be tailored
2. Auto Capacitive height control or Arc voltage height control can be configurated
3. Torch with fine adjustment& Alignment panel

Powerful CNC cutting machine Controller

1.Graphic display function

2.Break-point & power-cut restoration

3.Returning to reference point
4.Kerf compensation

5.Revolving

6.Mirror image

Cross Beam Length(X axis)

2.5m

Longitudinal Rail Length(Y axis)

3.0m

Effective Cutting Width (X axis)

2.0m

Effective Cutting Length (Y axis)

2.0m(Can be lengthened)

Cutting Mode

Flame/Plasma/ Flame& Plasma

Drive Mode

Single-side

Drive Method

Rack and pinion drive for X and Y axes

Flame Cutting Thickness

5-200mm

Plasma Cutting Thickness

1-60mm (according to the specification of plasma power source)

Cutting Speed

0-3500mm per minute

Moving Precision

0.01mm per step

Power Source (optional)

220V 50Hz 500-1000W

Cutting Gas

Acetylene, Propane

Plasma gas

Pressed air, Oxygen, N2

Torch height control system

Electric motorised torch height controller

Auto ignition

For flame cutting
