6ft Chain Link Fencing

6ft Chain Link Fencing and Accessories for British Columbia Projects
6ft chain link fencing and accessories form a complete perimeter system for projects in British Columbia, Canada. Product categories include standard galvanized chain link mesh, PVC-coated chain link fencing, and full accessory sets such as posts, rails, clamps, and tension wires. Materials typically use low-carbon steel wire with hot-dip galvanized or PVC coating for corrosion resistance. The standard height is 6 ft (≈1.8 m), with replaceable mesh gauges (9–12 gauge), mesh openings (40–60 mm), and customizable roll lengths and post sizes. Accessories are interchangeable for easy installation and maintenance.

Fence Height: Fence height 6 ft (1.83 m) for boundary and security.
Post Height and Installation Depth: Post height 10 ft (3.05 m) with 0.6–1.0 m embedment.
Chain Link Material: Low-carbon steel wire with galvanized or PVC-coated finish.
Mesh Opening Size: 2 inches (50 × 50 mm).
Wire Gauge Range: 9–11.5 (≈3.76–2.95 mm).
Coating and Surface Protection: Zinc coating 200–275 g/m²; PVC thickness 0.4–0.8 mm.
Post and Frame Components: Line posts, terminal posts, top rails, braces; size 48–60 mm.

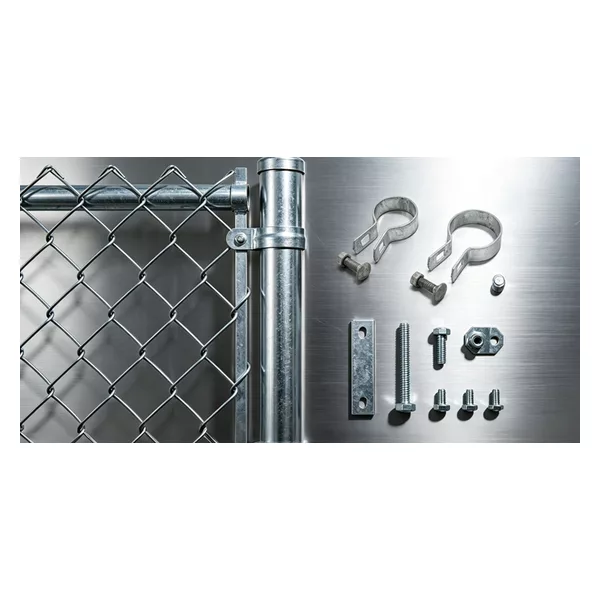

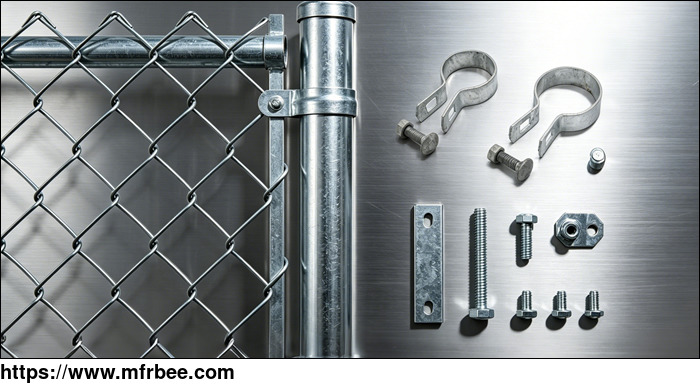

Accessory and Connection Parts: Tension bands, tie wires, clamps, tension bars.
Roll Length and Panel: Roll length 10–30 m; custom sizes available.
Application Scope: Residential, construction, sports, commercial, infrastructure fencing.
600-Meter Perimeter Galvanized Steel Post Specifications
The structural framework consists of hot-dip galvanized steel posts designed for long-term corrosion resistance. For a 600-linear-meter project, the system utilizes a combination of line posts for intermediate support and terminal posts (corner, end, and gate posts) for tensioning.
