Perimeter Chain Link Fence

Security Chain Link Fence Installation Using Heavy Duty Angle Iron Structural Intermediate And Corner Posts
Our company has a project in Africa divided into three sections as follows:
Project Requirements
Section 1: Security Fence
Quantity: 600 m chain link fencing, height 1800 mm.
Material: galvanized BS EN ISO 1461, powder coating EN 13438, green.
Includes 7 gates: 4 vehicular gates (6.2 m, 6.2 m, 4.3 m, 5.0 m) and 3 pedestrian gates (900 mm).
Section 2: Perimeter Fence
Quantity: 350 m chain link fencing, height 1800 mm.
Material: galvanized BS EN ISO 1461, powder coating EN 13438, green.
Includes 5 gates: 2 vehicular gates (6.3 m, 6.0 m) and 3 pedestrian gates (900 mm).
Section 3: High Security Perimeter Fence
Quantity: 450 m chain link fencing, height 2400 mm.
Extension: Includes 3 rows barbed wire on 500 mm angle post extensions.
Gate: Includes 3 vehicular gates (2 units 6.2 m, 1 unit 4.3 m) with 3 rows barbed wire on 500 mm angle post extensions.
System Details Specification
Chain link fencing minimum height 1.8 m. or 2400mm
Powder coated galvanized chain link fencing installed to allow ventilation.
Installation to BS1722 Part 1 and Part 10.
1. Fence Specification
Galvanized wire to BS EN ISO 1461
Powder coating to EN 13438
Fence height: 1800 mm
Mesh size: 50 mm
Wire diameter: 4.00 mm
Core diameter: 3.00 mm
Finish diameter: 4.00 mm
Color: green
2. Post Details
Intermediate posts: steel angle, 1.8 m height, 40 × 40 × 5 mm, galvanized and powder coated, green RAL standard

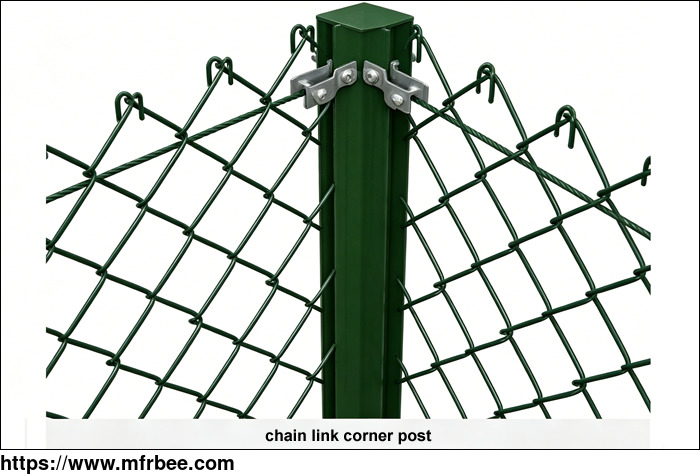

Corner posts: steel angle, 1.8 m height, 50 × 50 × 6 mm, galvanized, with winding brackets
Longer posts required in selected locations
3. Pedestrian Gate Details
Quantity: 3 gates
Type: single leaf swing gate
Clear opening: 900 mm
Infill: chain link, green powder coating
Finish: green powder coating
Lock: sliding latch, lockable from inside only
Drop bolt included
Concrete block: 300 × 300 × 300 mm , 2 units per gate
Block positioned flush with ground
Hole lined with galvanized tube
Opening direction: outward
Ground clearance: 100 mm
4. Vehicle Gate Details
Quantity: 6 gates
Type: double leaf swing gate
Opening widths: Gate 1-6.2 m,Gate-2 6.2 m,Gate- 3 4.3 m,Gate- 4 5.0 m,Gate-5: 6.3 m,Gate-6: 6.0 m. Gate opening size greater than road width
Infill: chain link, green powder coating
Finish: green powder coating
Lock: sliding latch, lockable from both sides, Drop bolt included
Concrete block: 300 × 300 × 300 mm, 1 unit per gate
Block flush with ground
Hole lined with galvanized tube
Opening direction: outward
Ground clearance: 100 mm
