Aluminum Chain Link Fence

Aluminum Chain Link Fence, Aluminum Poles and Fittings, Fence Posts, Gate Posts and Accessories
Aluminum Chain Link Fence with Aluminum Poles and Fittings offers corrosion-resistant fencing solutions. Available in standard heights ranging from 4 to 12 feet and mesh sizes of 2 inches, 2.5 inches, and 3 inches, this system provides flexibility for various security and boundary needs. The aluminum poles and fittings offer strength and weather resistance, making the fence ideal for both residential and commercial use. Common applications include residential boundaries, sports fields, parks, industrial enclosures, and security perimeters.

Fence height: 8 ft (2.44 m).
Chain Link Mesh opening: 2 in × 2 in (50 × 50 mm). Diamond-pattern aluminum chain link fabric for fence infill.
Chain Link Fabric Aluminum Wire Diameter: 9 gauge (0.148 in / 3.76 mm). Knuckled or twisted selvage options available.
Top Rail Size: 1-5/8 in OD (41.3 mm). Standard rail length: 10 ft (3.05 m) with aluminum rail sleeves.
Line post size: 2 in OD (50.8 mm).
Post length: 12 ft (3.66 m).
Typical spacing: 10 ft (3.05 m) centers.
End, Corner, and Gate Posts: 3 in OD (76.2 mm). post length 12 ft (3.66 m) with post caps.
Double-leaf Swing Gate Opening: 14 ft 6 in (4.42 m). gate frame: 1-5/8 in OD aluminum pipe with drop rod and fork latch.
Pedestrian Gate Size: Single swing pedestrian gate opening 5 ft 11-1/2 in (1.82 m). gate frame 1-5/8 in OD aluminum pipe with hinges and latch.

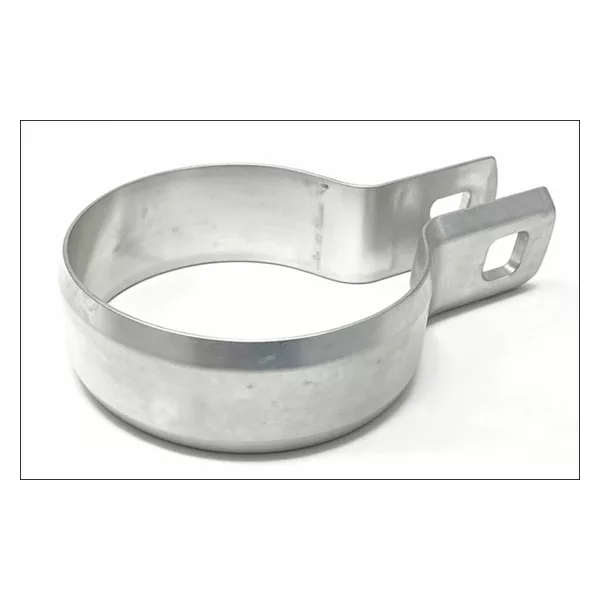

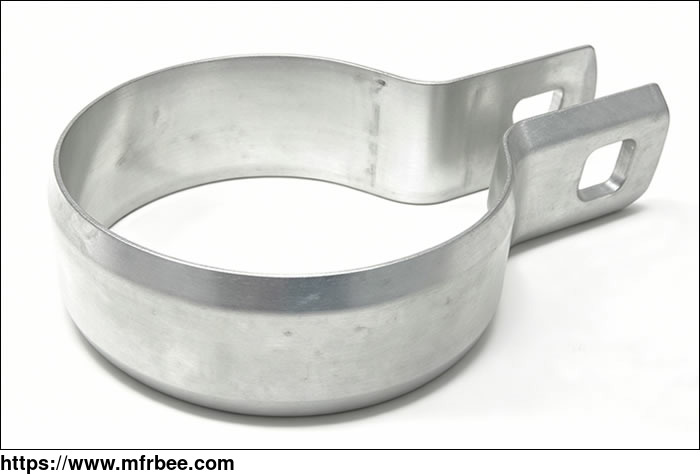

Fence Hardware Components: Aluminum tension bands, brace bands, rail ends, carriage bolts, hex nuts, truss rods, truss rod tighteners, fence ties, post caps, barb arms, and barbed wire assemblies.
Aluminum-Coated Chainlink Fence, Ga. 9, 2″ Mesh, 8-Feet High X 2,400-Feet Long For Saudi Arabia Project
Fence Type: Aluminum Coated Steel
Fence Length: 2,400 ft Total Length
Fence Height: 8 ft Fence Height
Mesh Opening: 2 in Chain Link Mesh
Wire Gauge: 9 Gauge Chain Link Wire
Double Swing Gates: 2 Gates, 20 ft Opening
Cantilever Gate: 32 ft Gate, 18 ft Opening
Personnel Gate: 1 Gate, 5 ft Width
Line Posts: 242 Posts, 2-3/8 in Diameter
Line Post Spacing: 10 ft On Center
Corner Posts: 12 Posts, 2-7/8 in Diameter
Gate Posts: 8 Posts, 4 in Diameter
V Barbed Wire Arms: 94 Arms, 6-Strand Type
45 Degree Arms: 150 Arms, 3-Strand Type
Barbed Wire: #12 Gauge, 10,000 ft
Top Rails: 1-1/4 in Aluminum Pipe
Middle Rails: 1-1/4 in Aluminum Pipe
Brace Components: Eye Tops And Braces
Hardware Items: Caps, Bands, Tie Wires
Gate Hardware: Latches, Hinges, Padlocks
Tension Components: Truss Rods And Tighteners
Padlock Keys: 2 Keys Per Padlock
