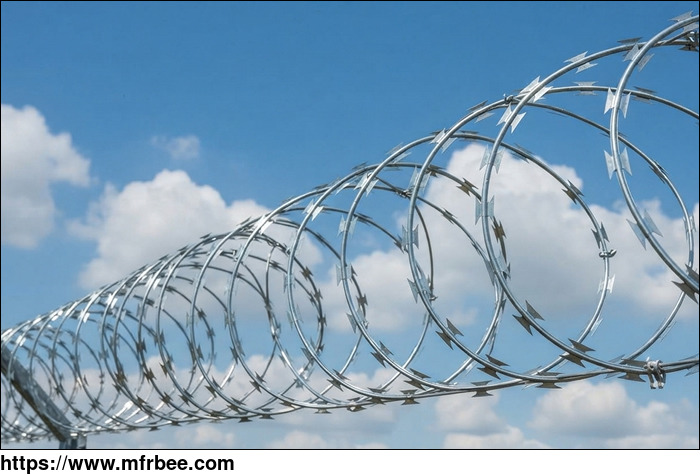

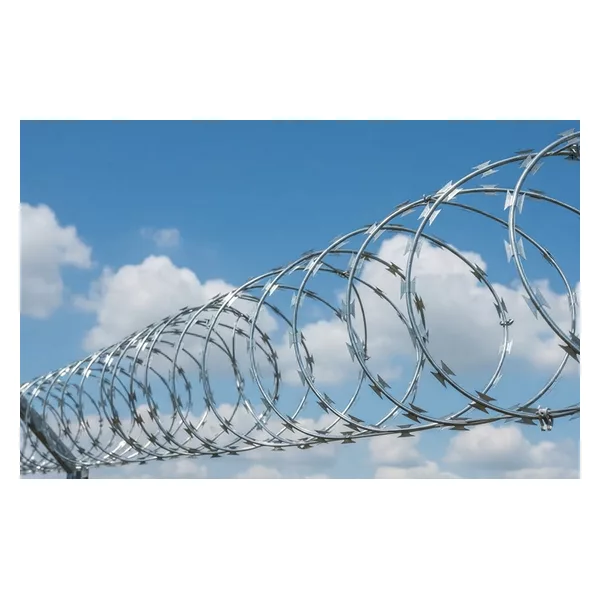

Razor Wire Chain Link Fence

Chain Link Fence With Razor Barbed Wire Design Manufacturing Installation
We design, manufacture, and install chain-link fence systems featuring razor barbed wire systems. Each project is customized according to site requirements, including security level, height, wire configuration, and post spacing. Below is a project example outlining typical specifications. Please contact us with your requirements for tailored chain-link and razor wire fencing solutions designed to meet your application needs.
Chain Link Fence with Razor Wire Fence System Specification
Chain Link Mesh: 3.8 mm Wire Diameter
Mesh Opening: 50 × 50 mm
Fence Height: 1800 mm
Razor Wire Extension: 500 mm
Overall Fence Height: 2300 mm
Razor Wire: 7 Line Wires of Barbed Wire, 3.0 mm Wire Fixed to Line Wires, 2 Line Wires Through Post Holes
Corner Posts: 2″ Ø Pipe Corner Post, Cranked Top, Concrete Foundation
Intermediate Post Elevation: 2″ Ø Pipe Intermediate Post, Cranked Top
Post Spacing: 3000 mm Maximum
Minimum Post Cover: 75 mm
Straining Post Detail: 2-1/2″ Ø Pipe Straining Post, 2″ Ø Pipe Tie, 2″ Ø Pipe Strut Welded to Post, Eye Bolt Strainers
Line Wire: 3.8 mm Diameter, 50 × 50 mm Chain Link Mesh, Wire Fixed to Posts.
Mesh Fixing Method: Chain Link Mesh Stretched Between Straining Posts, Mesh Fixed to Posts with Stirrup Ties, Intermediate Line Wires Fixed to Chain Link Mesh.
Intermediate Line Wire Fixing: Mild Steel Intermediate Line Wires Fixed to Chain Link Mesh, 50 mm Wire Wrapped Around Line Wire, Three Turns on Each Side of Post.
Fence Section View: Chain Link Mesh, Razor Wire, Finished Ground Level, 1″ Ø Pipe, 2″ Ø Pipe, 2-1/2″ Ø Pipe.
Foundation Specification: 1:3:6 Concrete Foundation, Foundation Width 400 mm, Foundation Width 800 mm, Foundation Depth 788 mm.
Fence Layout Plan View: Post Centres 3000 mm Maximum, Corner Post, Intermediate Post, Straining Post, Line Wire Layout.
Concrete Cill Detail: 6″ Fencing, 6 mm Diameter Mild Steel Hairpin, Stap Size 76 mm Internal, Set 76 mm into Concrete Cill, Concrete Cill Size 150 × 150 × 250 mm.
Drawing Components: Corner Posts, Intermediate Post Elevation, Straining Post, Section, Plan, Concrete Cill Detail.
Pipe Sizes: 1″ Ø Pipe, 2″ Ø Pipe, 2-1/2″ Ø Pipe, 2″ Ø Pipe Strut, 2″ Ø Pipe Tie.
