Airport Fence

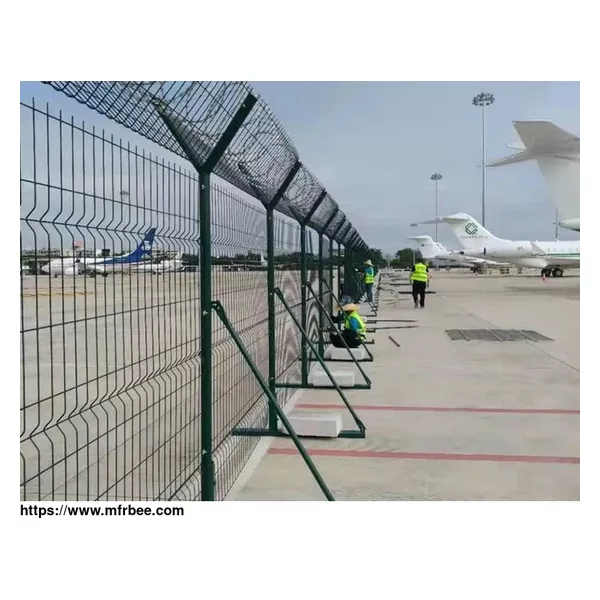

Airport Fence is a high‑security welded mesh barrier for airport perimeters, airside boundaries, cargo zones, maintenance yards and other restricted sites. The lower section is a 3D curved panel with 50×100mm or 50×200mm mesh and pressed bends for rigidity. The upper V‑shaped security section consists of Y posts, V brackets, razor wire and clamps. One side of the panel can have 30mm vertical anti‑climb barbs, installable at top or bottom. The complete system includes panels, posts, clamps, post caps and security toppings as per project layout.

Specifications

Panel Height:2030mm, 2230mm, 2430mm, 2700mm

Panel Width:2000mm, 2500mm, 2900mm. For heights above 2300mm, 2300mm width is standard for container loading.

Wire Diameter:4.0mm, 4.5mm, 5.0mm

Mesh Opening:50×100mm, 50×200mm

Panel Bends:4 horizontal pressed bends for stiffness

Vertical Barb:30mm anti‑climb barbs on one reversible side

Post Type:Y post, 60×60mm square post, 40×60mm rectangular post

Top Security System:V‑shaped assembly with V panel, Y post, razor wire and 4 sets of anti‑tamper clips

Clamp Options:Plastic clamp, metal spider clamp, metal square clamp, SBS anti‑theft fastener

Post Cap:Anti‑UV plastic cap or metal cap

Surface Treatment:Hot‑dipped galvanized, galvanized + powder coating, galvanized + PVC coating

Color:Green, dark green, black, grey, custom RAL color

Installation Method:Embedded concrete footing or base plate fixing per drawings

Gate Option:Pedestrian gate, double swing gate, sliding gate, maintenance gate, vehicle access gate

Order Details Needed:Fence height, panel width, mesh opening, wire diameter, post size, clamp type, coating color, gate size, topping layout
