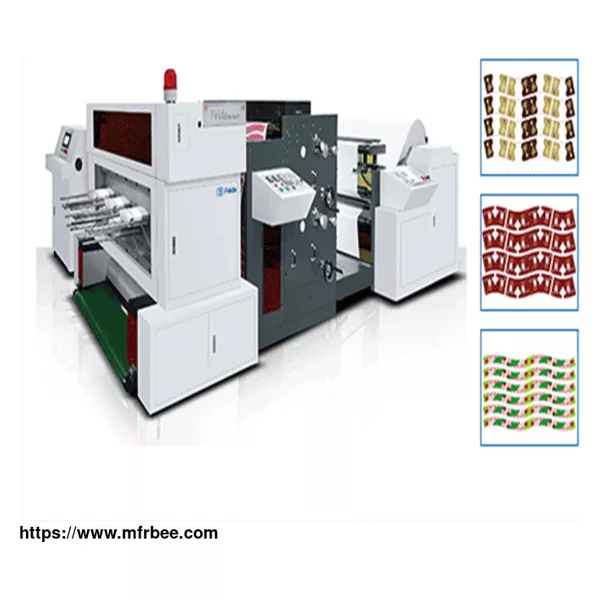

Roll Die Punching Machine Inline Flexo Printer

Minimum Order: 1

Packaging: N/A

Delivery: N/A

Roll platen punching machine inline Flexo Printer based on international advanced technology, it’s widely used in paper cup, paper bowl and paper plate and other paper products. It adopts micro-computer, human-computer control interface, servo positioning, alternating current frequency converter, photoelectric correcting deviation system, centralized oil lubrication, inline flexo printing.

Features of Roll Die Printing and Punching Machine Inline Flexo Printer

Anilox Roller To Spread Ink

Adopt The Anilox Roller To Spread Ink

Unwinding Tension

Unwinding tension is controlled by automatic tension controller from Japan Mitsubishi.

Printing Unit

Each printing unit adopts 360°for registration.

IR Dryer

Each printing unit have one IR dryer.

Rubber Roller

The rubber roller can break away automatically while parking, and run at a low speed in order to avoid ink being dry.

Main Motor

The main motor is adopted the import step-less regulation of frequency conversion.

Process

Web guiding, printing, IR drying and punching can be finished in one process.

Specification of Roll Die Punching Machine Inline Flexo Printer

Model FDYC850 FDYC920 FDYC1000

Max Paper Width 850mm 920 1000

Cutting Precision ±0.20mm

Paper Gram Weight 150-400g/m²

Production Capacity 280・380ti mes/min

Air Pressure Requirement 0.6Mpa

Air Pressure Consumption 0.25m²/min

Max Roller Diameter 1500mm

Flexo Print Units (IR dryer) 2-6 Colors

Web Guiding 1

Printing Repeat Length 10" - 22.5"

Gear Pitch 1/8” (3.175mm)

Highlights of Roll Die Punching Machine Inline Flexo Printer

Stronger

It adopts a micro-computer, human-computer control interface, direct connection servo positioning which make higher accuracy, and we make the wallboard, base much stronger than others. It guarantees that when the machine runs up to 380 strokes/min without any shaking.

Lubrication System

Adopting a forced lubrication system to ensure the main driving oil supply is regularly and reduce friction and prolong the machine life, you could set it to lubricate 10 seconds every 6 minutes.

Die-cutting Force

The die-cutting force is provided by a 5.5KW inverter motor. It is not only power-saving, but also can realize the step-less speed adjustment, especially when coordinate with the extra-large flywheel, which makes the die-cutting force strong and steady, and the electricity can be further reduced.

We adopt two swing arm cams which are much easier to adjust and operate when you change the punching mould, and it has higher stable pressure and high performance.

The Coordination Between Stepping Motor And Photoelectric Eye

The coordination between the stepping motor and the photoelectric eye which can identify colours assures the perfect fit of the die-cutting position and figures.

Electrical Cabinet

Frequency converter controls the main motor, with features of low energy and high efficiency. PLC and HMI: screen display the running data and status, all of the parameter can be set through the screen. Electrical Control System: adopts microcomputer control, encoder angle detect and control, photoelectric chase and detect, achieving from paper feeding, convey, die punching and delivering process automatic control and detect. Automatic Tension Control can control the paper tension automatically.

Feeding Unit

Adopting chain type pneumatic roller unwind, tension controls unwind speed, and that's hydraulic, it could support at 1.5T paper. Max roll paper diameter is 1.5m.

Die Cutting Mold

As a packaging machinery company, we adopt swiss material that could be used for at least 400 million strokes, and if the mould can’t cut well, you could sharpen the blade by a flat grinding machine, it could be sharpened 4-5times.

Each punching mould in one cavity is divided into 4 pieces which can be adjusted easily.

If you want to know more kinds of flat bed punching machine, please visit our website.
