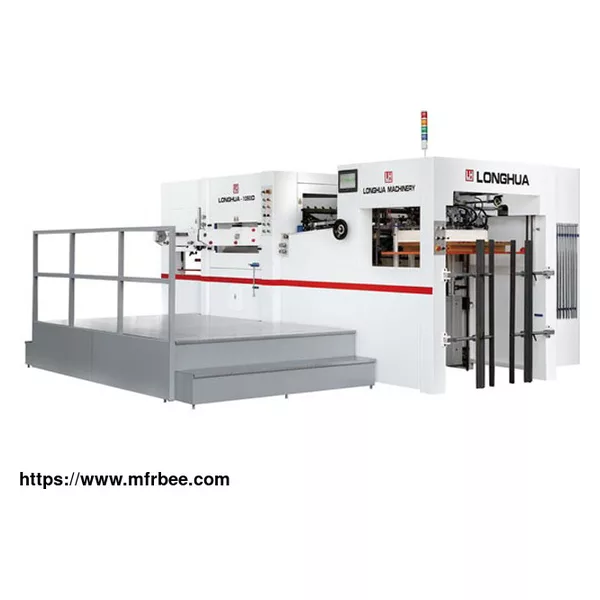

1050D Automatic Deep Embossing Die Cutting Machine

Packaging: N/A

Delivery: N/A

We designed 1050D Automatic Deep Embossing Die Cutting Machine, which is the greatest research and development and manufacturing of new equipment with a higher degree of intelligence.

This automatic cardboard embossing machine adopts numerous advanced pneumatic and servo driving processing technology from abroad. After the strict assembly quality control, the embossing roller machine has the advantage of simple operation and safe reliability.

The automatic embosser could deep embossing, creasing and die cutting after printing products, such as more than 80g/m2 paper, cardboard, corrugated paper below 4mm, pasting paper, laminating paper and so on.

Good quality and design make cardboard paper cutter embossing machine work stably and safety when machine's speed reaches 7500 sheets/h. This roll embossing machine will provide you to enjoy a comfortable operation and a faster return on investment.

Features of 1050D Automatic Deep Embossing Die Cutting Machine

Deep Embossing/Die Cutting Part

12 heated temperature areas are in the die-cutting platform. They have a timing pneumatic temperature controller function, and each area can be controlled separately. It adopts hot embossing, hot bumps, hot indentation and so on. Hot press honeycomb is made by high strength heat-resistant material, it will be not transformation in high temperature. Hot press honeycomb knife and die cutting knife could be changed, so it achieves the switch of hot press function and die cutting function.

Thicken Wall

Thicken wall could stress-tolerant 1000 ton, the embossing is clearer, the effect is better.

The whole wall of this visiting and greeting card embossing machine is made of nodular cast iron, which is better than regular steel.

12 Temperature Control Section

The 12 independent heating areas are controlled by a PID system, which was researched by our department. This system of paper cutting embossing machine could control the temperature stably, ensure the temperature is uniform in the whole heating system, quick response, it could adapt complex electrochemical aluminum transfer effect.

Delivery Section

Delivery section add tester into security system. It is equipped with inset counter. Using subsection could adjust brush and sheet air-blowing device, so the finished product of delivery section could product stably. Gripper drive train expanded buffer device.

Feeder/Feeding Section

The design of stacker preparatory stage was improved, it could use prepared car sheet piling. Also could use ordinary hydraulic car sheet piling to stacker directly. The machine has four suction nozzles and four sending nozzles in feeder, ensure feed smoothly. Adopt import screw air-blowing device, the scrapbook embosser machine for paper could make the sheet send smoothly.

Feeding Positioning Section

The incline-type paper moving table top is more suitable to high-speed thin paper and location. Side location adopt dual purpose side device with pull guide and push guide, accounting to paper choose, it makes switching easier. It could switch front rise position arriving reduction of speed device, it is benefit of thin paper's location.

Specification of 1050D Automatic Deep Embossing Die Cutting Machine

Machine Parameters:

Model 1050D

Name Automatic Deep Embossing Die Cutting Machine

Max. Sheet Size 1050×750mm

Min. Sheet Size 400×360mm

Max. Cutting Range 1040×720mm

Inner Chase Size 1080×745mm

Die Cutting Steel Plate Size 1080×736mm

Paper Thickness 80-2000 g/m² Cardboard

Corrugated paper≤4mm

Min. Grabbing-sheet Width 8mm

Plastic Range 0.1-2.0mm

Max. Mechanical Speed 7500 sheets/h

Max. Die Cutting Pressure 580T

Max. Feeding Pile Height 1350mm

Max. Delivery Pile Height 1200mm

Total Weight 18.9T

Dimensions 6300×4200×2100mm

Heating system 12 heating areas, 0°C-200°C adjustable

Total Power 20kw

Full Load Power 42kw

Voltage Requirements 380V 50Hz

Air compressor 0.8Mpa, 0.36m3 /min, 3kw

The material of machine: Ductile iron (Nodular cast iron)

Configuration of Die Cutting Machine

1050E/ES/D/DS/F/EF/FH

No. Accessory Brand Place of Origin

1 Photoelectric Switch SUNX Japan

2 HMI WEINVIEW Taiwan

3 Button SCHNEIDER France

4 A.C. Contactor SIEMENS Germany

5 Solid State Relay FOTEK Taiwan

6 PLC MITSUBISHI/PANASONIC Japan

7 Electric Horn QLIGHT Korea

8 Magnetic Valve SMC Japan

9 Oil-water Separator AIRTAC Taiwan

10 Motor Breaker SIEMENS Germany

11 Servo Motor(Foil stamping) YASKAWA Japan

12 Main Motor TECO Taiwan

13 Gear Motor CPG Taiwan

14 Oil Pressure Switch ARK Korea

15 Pneumatic Clutch OMPI Italy

16 Paper Feed Clutch MIKIPULLEY/OGURA Japan

17 Torque Limiter JASU Taiwan

18 Indexing Drives TAN TZU Taiwan

19 Vacuum Pump BECKER Germany

20 Feeder YONGCHUAN Taiwan

21 Feeder Nozzle SILENT Sweden

22 Tooth Row Drive Chain RENOLD Britain

23 Other Drive Chain TYC Taiwan

24 Tooth Row JASU Taiwan

25 Bearing FALA/IKO Germany/Japan

26 Rotary Joints DEUBLIN America

27 Timing Belt OPTIBELT Germany

28 Paper Feed Belt CODONBELT Switzerland

29 Mould Coil Spring TOHATSU Japan

30 Worm&Worm Wheel LIMING Taiwan

31 Oil Temp.Conditioning System WLP Taiwan

32 Cooling Fan SUNON Taiwan

33 Heat Exchanger LEINIX America

34 Lubrication Pump YONGSHENG Taiwan

35 Encoder OMRON Japan

36 Sealing Ring CTY Germany

37 Frequency Converter YASKAWA Japan

38 Body Material Ductile Iron QT600-3

Note：the accessories of machines can be changed in the process of upgrading, with no less than the existing brand quality, the seller will reserve the right, no longer separate notification.

Highlights of 1050D Automatic Deep Embossing Die Cutting Machine

Pneumatic Clutch

The high quality pneumatic clutch reduces noise and minimizes impact when stopping the embosser tipper machine at a high speed.

Gripper and Chain

The grippers of electric embossing machines for card making are made of special extra hard aluminium alloy, with anode treatment on the surface, ensuring accurate die-cutting and embossing, etc. at high speed. The adjustment mechanism, the patent design guarantees control accuracy. An imported chain is used for the main gripper transmission, with strength increased by 45% for accurate stability and prolonged life.

Lubrication System

With a programmable lubrication system, the accurate control of PLC ensures balanced lubrication of the embossing machine for card making.

Air Pump

Adopting imported equipment, improving the stability of the embosser machine for paper, low noise, high performance, long service life.

Now the price of pvc card embossing machine for sale is low, if you have needs, please contact us.

As one of packaging machinery suppliers, we will do our best to meet all the needs of customers.
