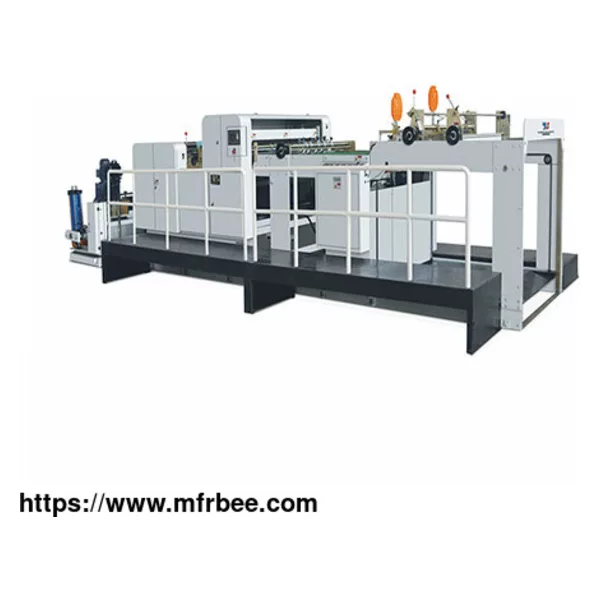

Automatic Trimming Intelligent Crosscutting Machine（Conveying Equipment)

This industrial paper die cutting machine is suitable for cutting big rolling packaging materials such as paper, paper-plastic composite, colour printing, colour printing adhesive, non-woven fabric, thin-film, etc truncated large drum material. Widely used in paper products processing industry, printing and packaging industry, etc.

Features of Automatic Trimming Intelligent Crosscutting Machine（Conveying Equipment)

Crosscutting Reel Material

With the continuous development of the processing industry of paper products and printing industry, crosscutting reel material is one of the indispensable equipped with printing and packaging industry.

Application of Intelligent Control

Using the electronic parts, such as Europe and the United States and Japan, more flexible application of intelligent control, make the simple mechanical operation, convenient maintenance, to ensure that the industrial paper cutting machine under the condition of high-speed operation can keep cutting precision and mechanical stable.

Unanimous Praise

By the national paper products processing industry and printing and packaging industry users alike.

Specification of Automatic Trimming Intelligent Crosscutting Machine

Model YSH-1400A YSH-1600A YSH-1800A

Max. width of cutting 1400mm 1600mm 1800mm

Max diameter of the material 1400mm 1400mm 1400mm

Range of raw material 60-600g/m² 60-600g/m² 60-600g/m²

Height of stacking Max.1100mm Max.1100mm Max.1100mm

Length of cutting 300-1800mm 300-1800mm 300-1800mm

Speed s200times/min s200times/min s200times/min

Precision ±0.2mm ±0.2mm ±0.2mm

Total Power 10kw 12kw 12kw

weight 4200kg 4800kg 5200kg

Overall dimension (LxWxH) 7000×1870×1850(mm) 7000×2170x1850(mm) 7000×2470×1850(mm)

As a packaging machinery exporter, we will do our best to meet all the needs of customers.
