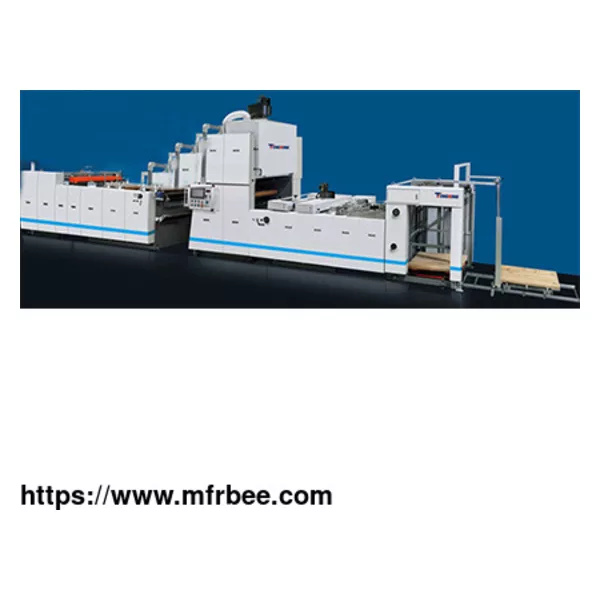

Automatic High-speed Flute Laminator

Minimum Order: 1

Packaging: N/A

Delivery: 15 Days

A high speed laminating machine has high technical content and a high degree of automation. The entire production process is controlled by automation, and the operation and maintenance are very simple. It can greatly reduce the number of workers and excessive dependence on the experience of operators, and ensure the product quality stably.

High Precision Laminating Machine uses bottom sheet automatically sent by suction device, and top sheet feeding manually. This humanized design makes paper feeding easier and more efficient. It is suitable for colour top sheet and corrugated paper laminating, colour top sheet and grey cardboard laminating.

Through a High-speed Flute Laminator Machine, the paper can be laminated with paperboard to increase the strength and thickness of the material or special effects. After the die-cutting, it can be used for packaging boxes, billboards and other purposes.

1. We are the manufacturer of producing machines for more than 24 years.

2. We have our own test chart; all of our products have been rigorously tested in the factory.

3. We have CE and quality management system certification.

4. Fast and accurate reply to customer requests.

5.Our professional R&D and QC team can strictly control the product quality to meet your requirement.

Features of Automatic High-speed Flute Laminator

Computerized High Speed

Computerized high-speed lamination can be up to 150m/min.

Direct Push Paper Loading Device

Direct push paper loading device is available for option.

Machine Runs Smoothly

Self-made four suckings and five forwarding suckers heavier feeder ensures that the machine runs smoothly with no missing of the sheet, even at high speed.

Sensing And Compensation And Alignment Device

The sensing and compensation and alignment device uses several groups of sensors to sense the relative position of the running corrugated board so that two servo motors at the left and right sides of the top paper can drive independently to align the top paper with corrugated paper with high accuracy and high speed.

The Electric Design Conforms To The Ce Standard

A global-functional electric control system with a touch screen and motion control card can monitor the working condition and abnormal indication automatically for troubleshooting. The electric design conforms to the CE standard.

Enhance The Evenness Of Gluing

Glueing unit uses a high precision coating roller, together with a specially designed metering rubber roller that can enhance the evenness of glueing. The unique glueing roller with glue stopping device and automatic glue level control system can guarantee the back-flow with no overflow of glue.

Ensure The Precision Of Every Position

Machine frames are processed by CNC lathe in one process, which can ensure the precision of every position. Toothed belts for transferring guarantee smooth running with low noise. Electric components use Chinese famous brands with high stability, less trouble and long service life.

High Sensitivity And Fast Speed

The corrugated board feeding unit adopts a powerful servo motor control system with the features of high sensitivity and fast speed. The suction unit uses a high-pressure blower, an imported high-flow control valve as well a unique dust collection filter box, which can enhance the suction force for different corrugated paper, ensuring smooth running with no double or more sheets, no missing sheet.

Specification of Automatic High-speed Flute Laminator

Model STCS1450 STCS1700

Max. Sheet Size 1450×1400 1700×1600

Min. Sheet Size 450×400 450×400

Appropriate Sheet Thickness 0.5-10 0.5-10

Sheet Weight 125-450 125-450

Installed Power 22 27.5

Lamination Precision ±1.5 ±1.5

Overall Dimension 15000×2250×2750 16000×2450×2800

Total Weight 7000 8000

There are many packing machine manufacturers in China, but we are one of the best choices for you.

Country: China (Mainland)
Business Type:
Market:
Founded Year:2021
Address:K2410, 16/F, Xinguangyingjing, No. 117, Shuiyin Road, Yuexiu District, Guangzhou
Contact:growing

high speed laminating machine

more images of Automatic High-speed Flute Laminator
