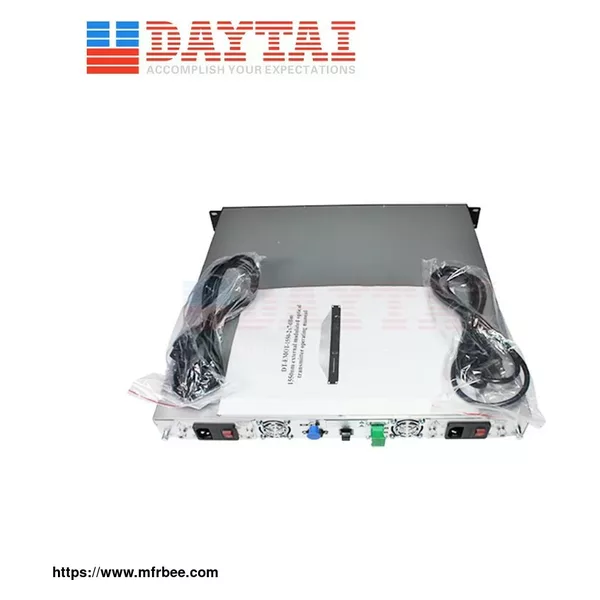

1/2Way 1550nm External Modulation Optical Transmitter
- Packaging
- N/A
- Delivery
- N/A
Specifications
★Description
DT-1550EM-2xXXdbm series optical transmitter is a 1550nm DFB laser external modulated transmitter. It is specially developed for the CATV signal that satisfies HFC network,RF range :47～1003MHz,RF return loss: >16dB,Rated input level:80dBµV,Input level range:78~96 (AGC mode, modulating signal)dBµV,AGC control range:+3～-3dB,MGC adjustable range：0~15dB，Optical connector：SC/APC，Output Power:2 x5dBm,2x7dBm,2x9dBm,2x10dBm is Optional,American standard power supply or European standard power supply is Optional.
★Specification
| Item | Unit | Technical Parameters |
| RF range | MHz | 47～1003 |
| RF flatness | dB | +/-0.75 |
| RF return loss | dB | >16 |
| RF input impedance | Ω | 75 |
| RF input connector type |
|
F type |
| Rated input level | dBµV | 80 |
| Input level range | dBµV | 78~96 (AGC mode, modulating signal) |
| AGC control range | dB | +3～-3 |
| MGC adjustable range | dB | 0~15 |
| Optical connector |
|
SC/APC, FC/APC |
| Operating temperature | °C | -5～45 |
| Storage temperature | °C | -30～+70 |
| Power Source Specification | V | 90～265VAC |
| 36～72VDC | ||
| Consumption | W | ≤60 |
| Dimension | mm | 483(L) × 455(W) × 44(H) |
| Total Weight | kg | 5.5 |
