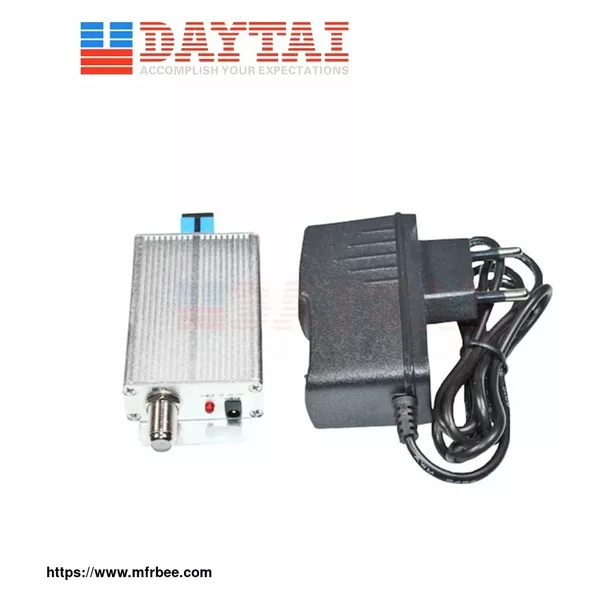

1550nm FTTH Mini CATV Optical Transmitter

Supplier: Hangzhou DAYTAI Network Technologies Co.,Ltd

Contact the supplier to confirm specifications, minimum order, sample availability and lead time.

https://www.daytaiopticalfiber.com/1550nm-FTTH-Mini-CATV-Optical-Transmitter.html
FTTH MINI CATV Optical Transmitter,(DTMT-13/14/15/16-xxMW),Output Optical Wavelength:1310 or 1550 or 1470 or 1610 nm, Optical Return Loss:45dB,Optical Connector:SC/APC,Optical Fiber Type:Single Mode,Frequency Range:40-1000MHz,Input Level:65-85dBuV,C/N:52dbc,Power Input Voltage:+6V~18V,Dimensions:90*45*19mm,Net weight:0.066Kg.
Model:DTMT-1550-xxMW

★Description

FTTH MINI CATV Optical Transmitter,(DTMT-13/14/15/16-xxMW),Output Optical Wavelength:1310 or 1550 or 1470 or 1610 nm, Optical Return Loss:45dB,Optical Connector:SC/APC,Optical Fiber Type:Single Mode,Frequency Range:40-1000MHz,Input Level:65-85dBuV,C/N:52dbc,Power Input Voltage:+6V~18V,Dimensions:90*45*19mm,Net weight:0.066Kg.

★Features

⊙Red-LED Power Indication

⊙Smaller size and easier install

⊙Voltage supply: +6V~18V(DC)

⊙Frequency range 40-1000MHz.

⊙Excellent Linearity and flatness

⊙Model Number: DTMT-13/15-xxMW

⊙Aluminum Profiles housing,excellent heat dissipation performance

⊙GaAs Active Devices,designed For FTTH(Fiber To The Home Network)

⊙RF \"F\" Connector In and Optical Wavelength Output 1310nm & 1550nm or customized

★Product Performance

Number Item

Unit

Description

Remark

Output Optical Wavelength:1310 or 1550nm (Can be customized)

1310nm Wavelength Output Power :1mW,3mW ,6mW ,10mW is optional (Usually the Standard power is 6mw or 10mw)

1550nm Wavelength Output Power :1mW,3mW ,5mW,6mW is optional (MAX is 6mW,Usually the Standard power is 6mw)

Customer Interface

1

RF Connector



75Ω\"F\" connector


2

Optical Connector



SC/APC

Can be customized

3

DC Supply



DC Adapter


Optical Parameter

4

Optical Return Loss


dB

>45


5

Output Optical Wavelength


nm

1310 or 1550 or 1470 or 1610 nm

Can be customized


Output Optical Power


mW

≤10

Can be customized

6

Optical Fiber Type



Single Mode


RF Parameter

7

Frequency Range

MHz

40-1000


8

Flatness

dB

±0.5


9

Input Level

dBuV

65-85


10

Output Impedance

Ω

75


11

C/N

dBc

52


Other Parameter

12

Power Input Voltage

VDC

+6V~18V

Factory Supply 9V DC Adaptor

13

Power Consumption

W


14

Dimensions

mm

90*45*19


15

Net weight

KG

0.066

Not Include Power Adaptor
