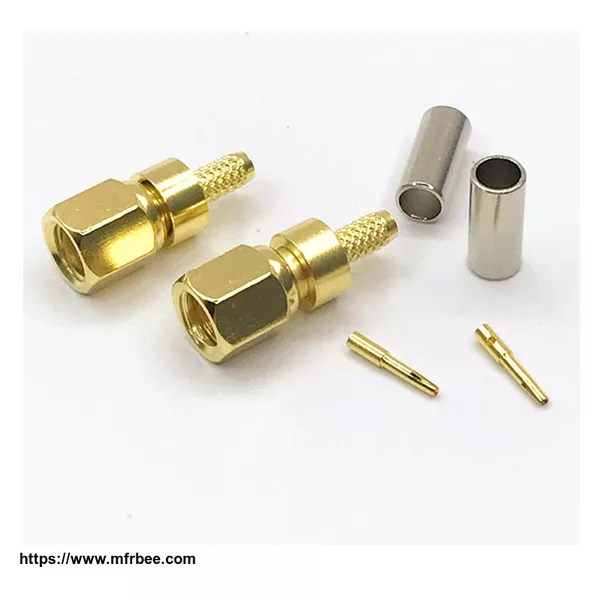

SMC Female Connector RG174 Cable
Product Quick Detail
- Place Of Origin
- China
- Minimum Order
- 100
- Packaging
- 100 pcs/bag
- Delivery
- 7 Days
Specifications
| Model | FT-Connector-023 | |
| Major Technical Characteristics | ||
| Type | SMC-C-KY1.5-023 | |
| Impedance | 50Ω | |
| Frequency Range | DC~6GHz | |
| Center conductor retention force | ≥0.28N | |
| Insertion loss | ≤0.24dB/6GHz | |
| Insulation resistance | ≥5000MΩ | |
| Voltage Standing Wave Ratio | Straight ≤1.30/3GHz | |
| Right Angle ≤1.45/3GHz | ||
| Durability(mating) | ≥500(cycles) | |
| Cable | RG174,RG316 | |
| Material & Plating | ||
| Body | Brass | Nickel plated |
| Pin contact | Brass | Gold plated |
| Resilient contact | Beryllium-copper | Gold plated |
| Socket contact | Beryllium or tin brass | Gold plated |
| Insulator | PTFE | |
| Crimp ferrule | Copper alloy | Nickel or gold plated |
| O-ring sealing | 6146 silicone rubber |
