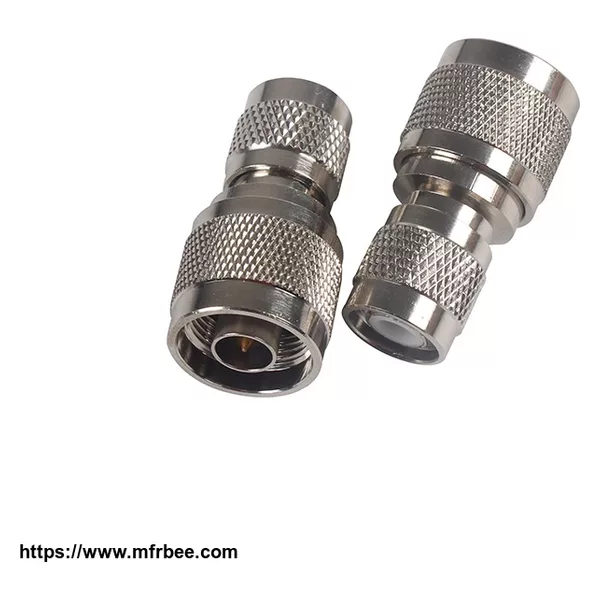

RF Connector RF Coaxial Adapters connector
Product Quick Detail
- Gender
- male
- Minimum Order
- 100
- Application
- RF
- Sample
- welcome ask sample for testing
- Producing
- customize connector according to your drawing or sample
- Place Of Origin
- China
- Type
- SMA
- Website
- www.futai8.com
- Packaging
- 100 pcs/bag
- Delivery
- 7 Days
Specifications
| Model | FT-Adapter-SMA-JK-01 | |
| Major Technical Characteristics | ||
| Type | FT-Adapter-SMA-JK-01 | |
| Impedance | 50Ω | |
| Frequency Range | DC~12.4 | |
| Center conductor retention force | ≥0.28 N | |
| Insertion Loss | ≤0.15dB/6GHz | |
| Voltage Standing Wave Ratio | Straight ≤1.10+0.02f | |
| Durability(mating) | ≥500(cycles) | |
| Material & Plating | ||
| Body | Brass | Gold plated /nickel plated |
| Pin contact | Brass | Gold plated |
| Resilient contact | Beryllium-copper | Gold plated |
| Socket contact | Beryllium-copper Customized) | Gold plated |
| Insulator | PTFE | |
| O-ring sealing | 6146 silicone rubber |
