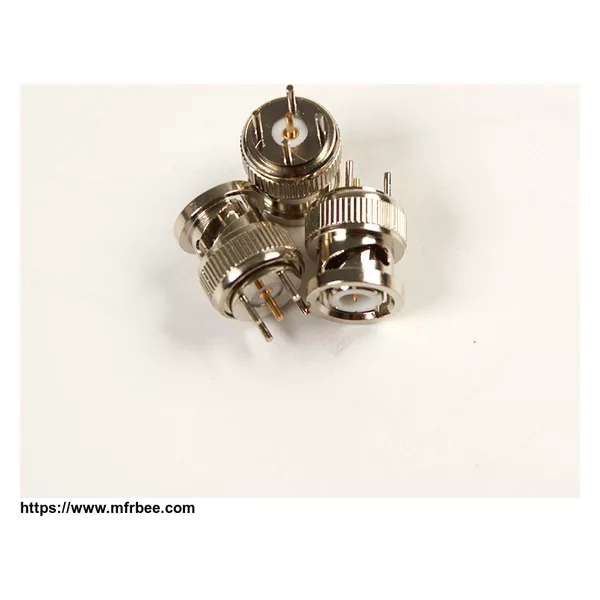

BNC Male Connector BNC Male PCB Connector
Product sourcing details
- Place of Origin
- China
- Application
- RF
- Pins:
- 1P
- Plating
- Nickel
- Product name:
- BNC male connector
- Material:
- Brass
- Website
- www.futai8.com
- Gender
- Male
- Type
- BNC
- Package
- 100pcs/bag
- Brand name
- FUTAI
- Packaging
- 100 PCS/Bag
Supplier: FUTAI HK Co.,ltd
Purchasing information
- Model / reference
- FT-Connector-178B
- Minimum order
- 100
- Samples
- welcome ask sample for testing
- Lead time
- 7 Days
Please confirm with the supplier: Key specifications / compatibility, Export markets, Supply capacity.
Specifications
Model | FT-Connector-178B | |
Major Technical Characteristics | ||
Type | BNC-C-JY3-178B | |
Impedance | 50Ω | |
Frequency Range | DC~4GHz | |
Center conductor retention force | ≥0.57 N | |
Insertion Loss | ≤0.20dB/3GHz | |
Insulation resistance | ≥5000MΩ | |
Voltage Standing Wave Ratio | Straight ≤1.22/3GHz | |
Right angle ≤1.30/3GHz | ||
Durability(mating) | ≥500(cycles) | |
Cable | RG1 | |
Material & Plating | ||
Body | Brass | Nickle plated |
Pin contact | Brass | Gold plated |
Resilient contact | Tin bronze | Nickel plated |
Insulator | PTFE | |
Crimp ferrule | Copper alloy | Nickel or gold plated |
O-ring sealing | 6146 silicone rubber |
