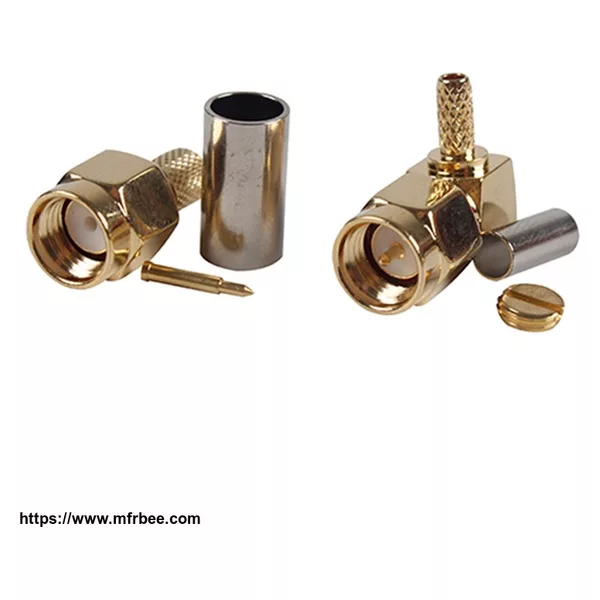

Model | FT-SMA-KY1.5-G01 | |
Major Technical Characteristics | ||
Type | SMA-KY1.5-G01 | |
Impedance | 50Ω | |
Frequency Range | DC~12.4GHz(Semi-Rigid Cable DC-18GHz) | |
Center conductor retention force | ≥0.28 N | |
Insertion Loss | ≤0.15dB/6GHz | |
Voltage Standing Wave Ratio |
Straight Flexible Cable ≤1.10+0.02f
Semi-Rigid Cable≤1.07+0.018f |
|
Right angle Flexible Cable ≤1.20+0.03f
Semi-Rigid Cable≤1.17+0.02f |
||
Durability(mating) | ≥500(cycles) | |
Cable | RG174 Cable | |
Material & Plating | ||
Body | Brass | Gold plated |
Pin contact | Brass | Gold plated |
Socket contact | Beryllium-copper Customized) | Gold plated |
Resilient contact | Beryllium-copper | Gold plated |
Insulator | PTFE | |
Crimp ferrule | Copper alloy | Nickel or gold plated |
O-ring sealing | 6146 silicone rubber |
