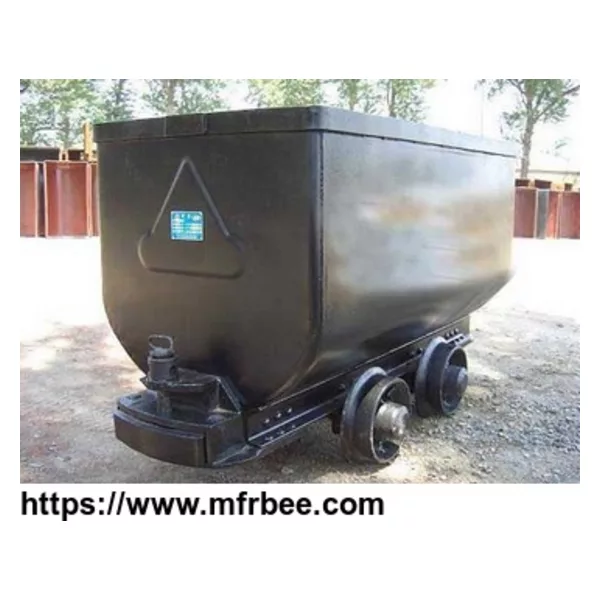

4-6mm thickness Mine Ore Car for conveying coal is used for mine and construction, load stone, coal, minerals etc.
1) High reliability;
2) Long service time;
3) Low operational costs;
4) Made by high quality steel;
5) High stress area welds eliminated;
6) Mass and section thickness optimized;
7) Simplified state of the art mainframe and easy to operate.
Model | Capacity (m3) | Payload (t) | Track (mm) | Wheelbase (mm) | Wheel dia (mm) | Loading height (mm) | Loading (KN) | Overall weight (kg) | Overal dimesion (mm) | Spring damper |
MGC1.7-6A | 1.7 | 2.7 | 600 | 750 | 300 | 320 | 60 | ≤720 | 2400x1050x1200 | single |
MGC17-6B | 1.7 | 2.7 | 600 | 750 | 300 | 320 | 60 | ≤760 | 2400x1050x1200 | two |
Model | Volume (m3) | Capacity (T) | Max. Capacity(T) | Length (mm) | Width (mm) | Height (mm) | Gauge (mm) | Wheel base (mm) | Dia of wheel (mm) | Traction height (mm) | Traction force (KN) | Weight (kg) |
MGC1.1-6 | 1.1 | 1 | 1.8 | 2000 | 880 | 1150 | 600 | 550 | 300 | 320 | 60 | 610 |
MGC1.7-6 | 1.7 | 1.5 | 2.7 | 2400 | 1050 | 1200 | 600 | 750 | 300 | 720 | ||
MGC1.7-9 | 1.7 | 1.5 | 2.7 | 2100 | 1150 | 1300 | 900 | 600 | 350 | 970 | ||
MGC3.3-9 | 3 | 3 | 5.2 | 3450 | 1320 | 1300 | 900 | 1100 | 350 | 1320 |
