Cast Iron Railroad Wagon Wheelset
Product Quick Detail
- Minimum Order
- 1
- Packaging
- N/A
- Delivery
- discuss personally
Specifications
Introduction of Cast Iron Railroad Wagon Wheelset
Cast Iron Railroad Wagon Wheelset adapted cast iron or cast steel as its material, railroad wheels consists of two wheels, one axle, four bearings, and other parts. With 1-25 tons loading capacity, railway wagon wheels set is widely used for gauges of 600mm, 762mm, 900mm, and etc.
Main Parameter of Cast Iron Railroad Wagon Wheelset
| Model | Mine Car Weight kg | Track mm | Wheel Diameter | Max Axle Distance of wheels | Mindistance of covers | Axle diameter |
| ZBL600/300 | ≤2400 | 600 | 300 | 808 | 510 | 60 |
| ZBL762/300 | 762 | 970 | 672 | |||
| ZBL900/300 | 900 | 1108 | 810 | |||
| ZBL600/350 | ≤6700 | 600 | 350 | 850 | 490 | 80 |
| ZBL762/350 | 762 | 1012 | 652 | |||
| ZBL900/350 | 900 | 1150 | 790 | |||
| ZBL600/400 | ≤9000 | 600 | 400 | 870 | 476 | 95 |
| ZBL762/400 | 762 | 1032 | 638 | |||
| ZBL900/400 | 900 | 1170 | 776 |

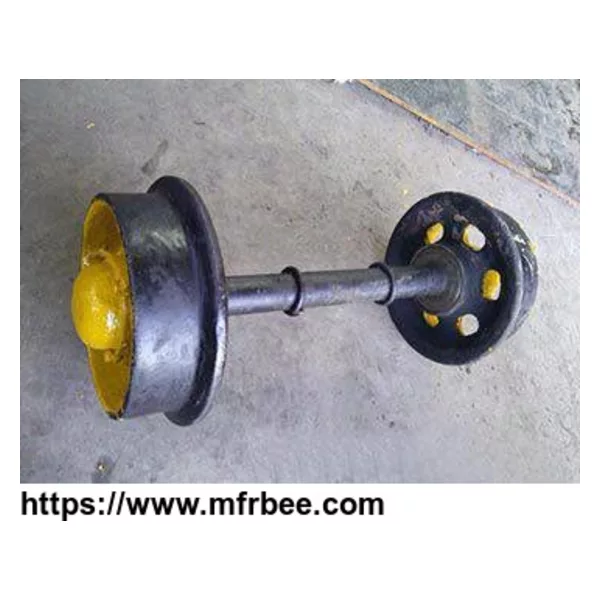

Pictures Of Cast Iron Railroad Wagon Wheelset
