Mine Railed Car Wheel Set
Product Quick Detail
- Minimum Order
- 1
- Packaging
- N/A
- Delivery
- discuss personally
Specifications
Introduction of Mine Railed Car Wheel Set
1. Material: cast steel or cast iron;
2. Constitute: two wheels, one axle, four bearings, and other parts;
3. Loading capacity: 1-25 tons, each one is OK;
4. Wheel sets gauge: 600mm, 762mm, 900mm, and etc;
5. The type of the wheels: hollow wheel sets and solid wheel sets;
6. The diameter of the wheels: 300mm, 350mm, 400mm, 450mm;
7. The material of the axle: 45# steel, or Q235;
8. The quantity of each wheel's bearing: two;
9. The material of the bearing: LYC32212, conical roller bearing, deep groove ball bearing;
10. Weight: 70kg.
Main Parameter of Mine Railed Car Wheel Set
| Model | Mine Car Weight kg | Track mm | Wheel Diameter | Max Axle Distance of wheels | Mindistance of covers | Axle diameter |
| ZBL600/300 | ≤2400 | 600 | 300 | 808 | 510 | 60 |
| ZBL762/300 | 762 | 970 | 672 | |||
| ZBL900/300 | 900 | 1108 | 810 | |||
| ZBL600/350 | ≤6700 | 600 | 350 | 850 | 490 | 80 |
| ZBL762/350 | 762 | 1012 | 652 | |||
| ZBL900/350 | 900 | 1150 | 790 | |||
| ZBL600/400 | ≤9000 | 600 | 400 | 870 | 476 | 95 |
| ZBL762/400 | 762 | 1032 | 638 | |||
| ZBL900/400 | 900 | 1170 | 776 |

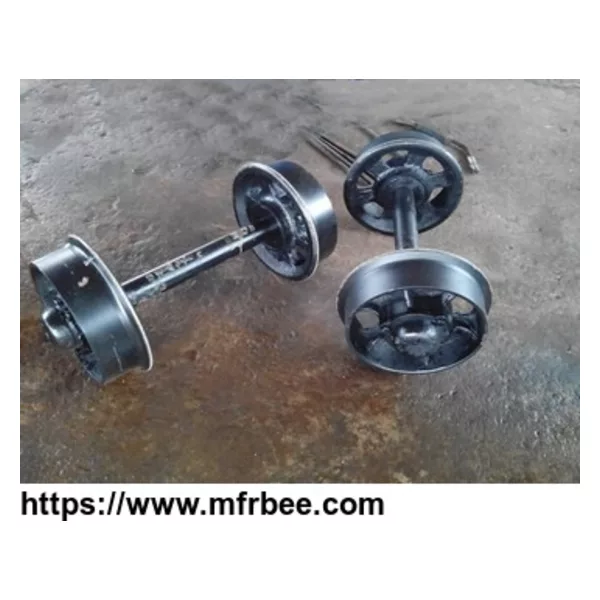

Pictures Of Mine Railed Car Wheel Set
