ST Shuttle Mine Car
Product Quick Detail
- Minimum Order
- 1
- Packaging
- N/A
- Delivery
- discuss personally
Specifications
Introduction Of ST Shuttle Mine Car
ST Shuttle Mine Car is an high-efficient gangue transport device, mainly used in the projects of underground roadway, tunnel, culvert, etc. Usually ST Shuttle Mine Car is guided by locomotive and can be used together with mucking loader, rock loader.
ST Shuttle Mine Car has small type and large type, covering nine versions from 4m3 to 30m3.
Main Characteristics ST Shuttle Mine Car
1. ST Shuttle Mine Car is mainly used for railway tunnel, hydraulic culvert, such as underground mine roadway and military cavern excavation construction. It is a kind of efficient equipment of transporting the materials;
2. Good shock absorption performance, stable operation, not easy to fall;
3. Small coal mining shuttle car is especially suitable for bending more mechanized storage construction of the tunnel and lane section.
Main Advantages of China Coal Group
1. Professional mine cars: material car, fixed mining car, bucket-tipping car, drop bottom car, single rail side discharge type mine car, hydraulic pressure side discharge mine car, flatbed mine car, large spindle mine cart etc.
2. Hot sales, good price, good quality and reliable service system.
3. Supply various shuttle mine cars and accessories, such as 4,6,8,10,12,14,16,20,25,30,45 volume.
4. Fast Shipment, it generally will be shipped in 10 days.
Parameters Of ST Shuttle Mine Car
| Model | ST(D)-14B | ST(D)-16B | ST(D)-20B | ST(D)-25B | ST(D)-30B | |
| Volume(m3) | 14 | 16 | 20 | 25 | 30 | |
| Self weight(t) | 13.6 | 17.8 | 19.84 | 22.6 | 28.8 | |
| Loading capacity(t) | 28 | 32 | 40 | 50 | 60 | |
| Track gauge(mm) | 600/762/900 | |||||
| Overall dimension size | Length(m) | 11.25 | 12.84 | 12.9 | 14.3 | 17.8 |
| Width(m) | 1.77 | 1.77 | 1.78 | 2.05 | 1.8 | |
| Height(m) | 2.56 | 2.68 | 2.68 | 2.7 | 2.7 | |
| Min. turning radius(m) | 18 | 20 | 25 | 25 | 30 | |
| Loading height(m) | 1.45 | 1.52 | 1.53 | 1.7 | 1.73 | |
| Disassemble time(min) | 2 | 4 | 4 | 4.5 | 4.5 | |
| Max running speed(km/h) | 15 | |||||
| Max motor power(kw) | 18.5 | 18.5*2 | 22*2 | 22*2 | 30*2 | |
| Drive mode | single drive | double drive | ||||
| Center distance of truck frame(mm) | 5450 | 6250 | 6350 | 7080 | 7250 | |
| Applicable rail(kg/m) | >=33 | >=33 | >=38 | >=38 | >=43 | |
| Applicable roadway size(width*height)(m) | 3.4*3.5 | 3.5*4 | 4*4 | 4*4.5 | 5*5.5 |

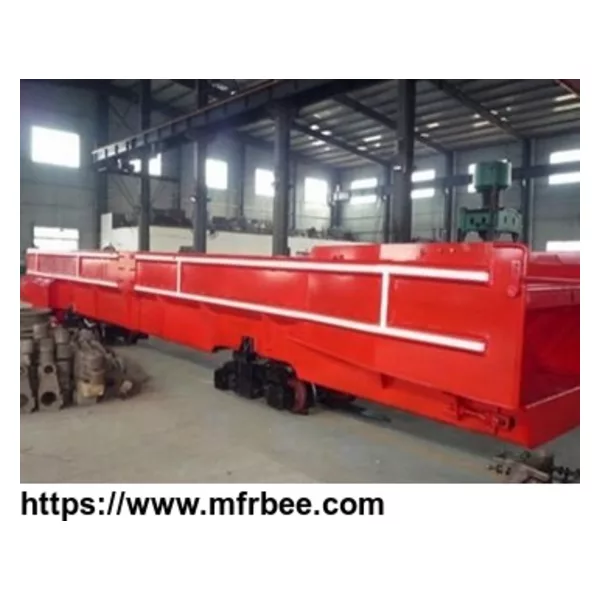

Pictures Of ST Shuttle Mine Car
