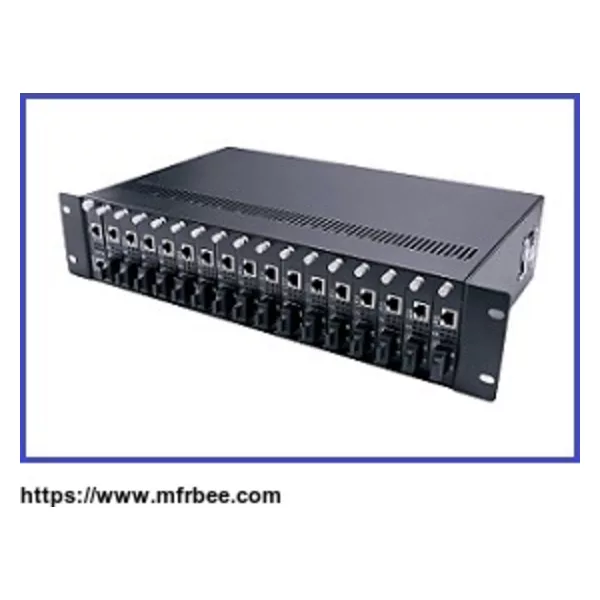

Managed Chassis Media Converter

Company: Shanghai Baudcom Communication Device Co.,Ltd
Country: Afghanistan
Business Type: Manufacturer
Market: Africa,Americas
Founded Year: 2006
Contact: Ivy Ma

Product function: Suports all kinds converter card

Features:

standard 19\" rack mount
It could realize media converter SNMP management. This is media converter module model name as BD03-card and SNMP module as BD03-card-NM
can insert 16 function BD03-card , 1 SNMP module and 2 slots at back panel, support free combination of AC+DC redundant
Support WEB based management
Our manageable system supports the management based on WEB . It is easy to be understood and used ,no need install special software , so that it is easier for the users .
Support SNMP management
Fully support SNMP , the users can manage the relational devices via any operating system , such as HP-OpenView .
Support Console management when emergency
Support local command-string management via Console port , the users can manage the devices via other networks such as Telephone System , in case the Ethernet networks failed .
Support TELNET
The software can be upgraded online via TFTP.
Hot Swappable (Power supply, MC module
power supply: used with 220 VAC 50 Hz, 2 units
have 2 Fans to radiate heat
operated at 0-55 degree

Dimension: 430(L) X 368(W) X 112(H) mm


BD03-Card	SNMP Card

Parameter:

Parameter	Specifications
Number of slots	17
Structure	2U rack
Power input	AC Voltage: AC 85~265V; frequency: 50/60 Hz
	DC voltage: DC -36~72V
Power output	DC5V 16A
Power configuration	Single power supply, or dual power supply for warm backup mode
LED indication	POWER (power supply)
Max power consumption	95W
Operating temperature	-10~55iC
Operating humidity	5%~90%
Maintaining temperature	-40~70iC
Maintaining humidity	5% ~ 90% non-condensing
Dimensions of rack	112mm (H) * 368mm (W) * 430mm (D)
