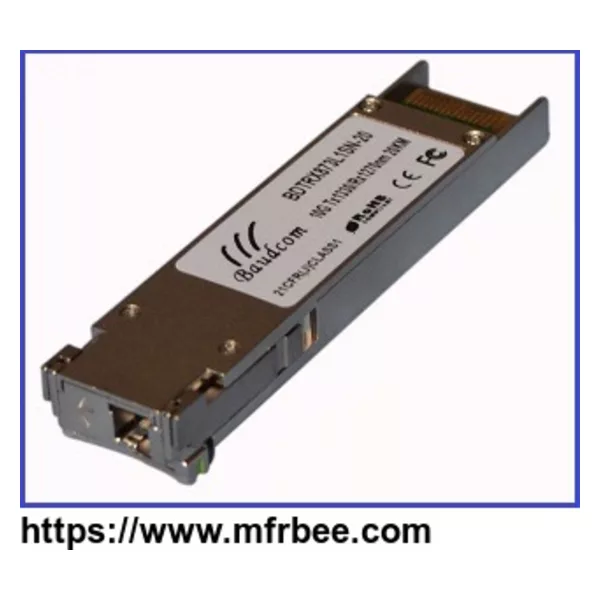

10G XFP BIDI Transceiver

Features

¨         Supports 9.95Gb/s to 10.5Gb/s bit rates

¨         Hot-pluggable XFP footprint

¨         Maximum link length of 20km with SMF

¨         1270/1330nm DFB laser Transmitter and 1330/1270nm Receiver

¨         XFP MSA package with LC connector

¨         No reference clock required

¨         Loop Back Support.

¨         +3.3V，+1.8V power supply

¨         Power dissipation

¨         Compatible with RoHS

¨         Built-in digital diagnostic functions

¨         Temperature range 0°C to 70°C

Applications

¨         10GBASE-LR at 10.3125Gbps

¨         10GBASE-LW at 9.953Gbps

¨         10GBASE-BX 10G Ethernet

¨         10GBASE-BX 10G Ethernet with FEC

Description

Baudcom 10G XFP WDM module is compliant with the IEEE803.3ae 10Gbase-Bx. and transmission distance up to 20km on SMF.

The transceiver module comprises a transmitter with a 1270/1330nm DFB laser transmitter, an integrated 1330/1270nm detector preamplifier(IDP) mounted in an optical header and a limiting post-amplifier IC. Transmitter and receiver are separate within a wide temperature range of  0℃to +70℃  and offers optimum heat dissipation and excellent electromagnetic shielding thus enabling high port densities for 10 GbE systems.
