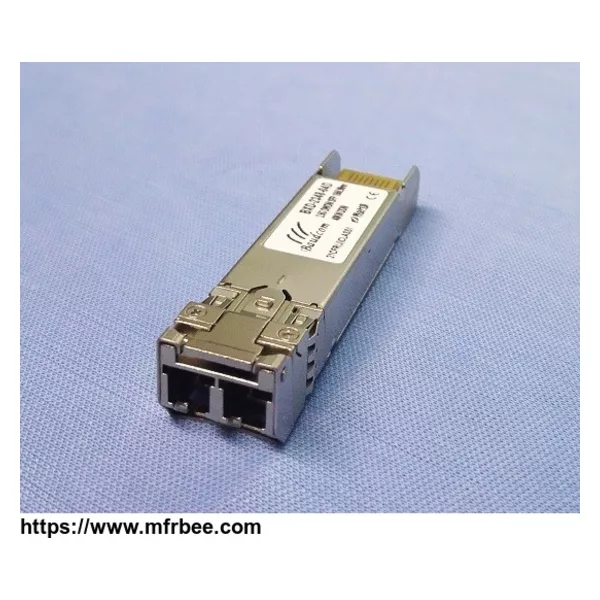

DWDM 2.67G SFP Optical Transceiver

Features

¨        Wavelength selectable to C-band ITU-T grid wavelengths

¨        Suitable for use in 100GHz channel spacing DWDM systems

¨        DWDM SFP MSA Compliant

¨        Up to 2.67Gb/s data rate

¨        OC48 Long Reach 80km

¨        Cold Start up Wavelength Compliance

¨        Low Power Dissipation

¨        -5oC to 70oC Operating Case Temperature

¨        Diagnostic Performance Monitoring of module temperature, supply

Voltages, laser bias current, transmit optical power, receive optical power,

Laser temperature and TEC current

¨        Extended link budget with APD receiver technology

¨        RoHS compliant and lead free

Applications

¨        SFP Transceivers for DWDM SONET/ SDH

¨        Ethernet IEEE 802.3ae

¨        Fiber Channel

Description

Baudcom DWDM SFP Transceiver exhibits excellent wavelength stability, supporting operation at 100 GHz channel, cost effective module. It is designed for DWDM SONET/ SDH, Gigabit Ethernet and Fiber- Channel applications.

The transceiver consists of two sections: The transmitter section incorporates a colded DFB laser. And the receiver section consists of a APD photodiode integrated with a TIA. All modules satisfy class I laser safety requirements. BAUDCOM DWDM SFP transceiver provides an enhanced monitoring interface, which allows real-time access to device operating parameters such as transceiver temperature, laser bias current, transmitted optical power, received optical power and transceiver supply voltage, laser temperature and TEC current.
