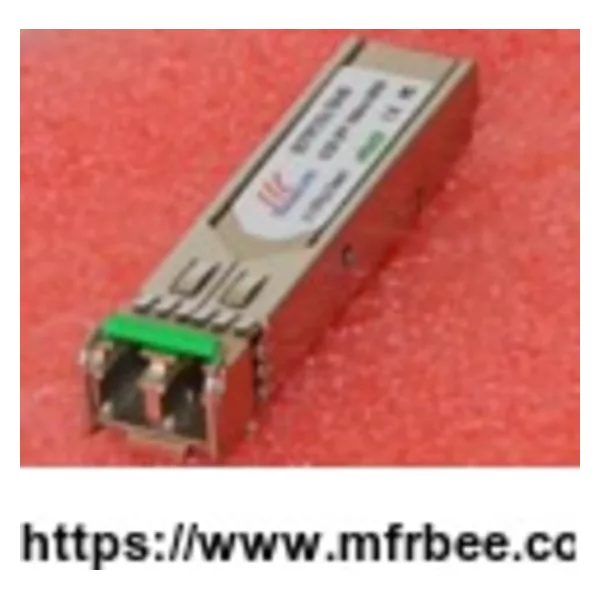

3Gbps Video SFP Optical Transceiver

Features

HD-SDI SFP Transceiver available

SD-SDI SFP Transceiver available

3G-SDI SFP Transceiver available

SMPTE 297-2006 Compatible.

Metal enclosure for Lower EMI

1310nm DFB laser and PIN photodetector

Compliant with SFP MSA and SFF-8472 with duplex LC receptacle

Digital Diagnostic Monitoring:

Compatible with RoHS

+3.3V single power supply

Operating case temperature:

Standard : 0 to +70°C

Industrial : -40 to +85°C

Applications

SMPTE 297-2006 Compatible Electrical-to-Optical Interfaces.

HDTV/SDTV Service Interfaces.

Description

The SFP transceivers are high performance, cost effective modules supporting dual data-rate of 3Gbps and 20km transmission distance with SMF.

The transceiver consists of three sections: a DFB laser transmitter, a PIN photodiode integrated with a trans-impedance preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safety requirements.

The transceivers are compatible with SFP Multi-Source Agreement (MSA) and SFF-8472. For further information, please refer to SFP MSA.

Absolute Maximum Ratings

Table 1 - Absolute Maximum Ratings

Parameter	Symbol	Min	Max	Unit
Supply Voltage	Vcc	-0.5	4.5	V
Storage Temperature	Ts	-40	+85	°C
Operating Humidity	-	5	85	%

Recommended Operating Conditions

Table 2 - Recommended Operating Conditions

Parameter	Symbol	Min	Typical	Max	Unit
Operating Case Temperature	Standard	Tc	0		+70	°C
Extended	-20		+85	°C
Power Supply Voltage	Vcc	3.13	3.3	3.47	V
Power Supply Current	Icc			300	mA
Data Rate			3		Gbps
