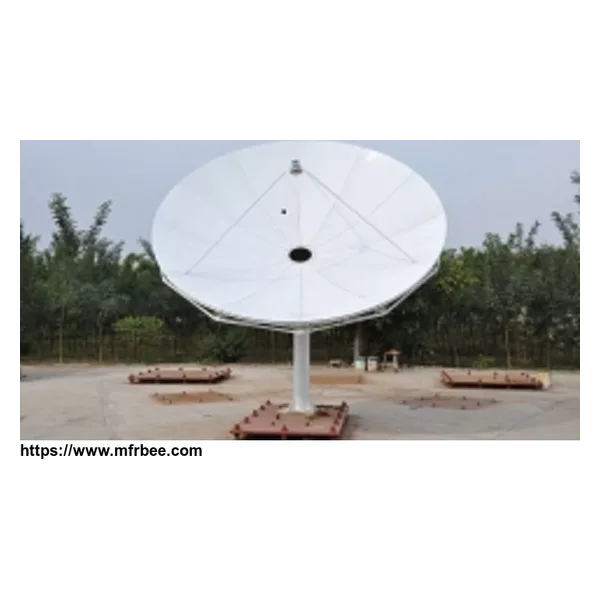

3.7 METER RX ONLY ANTENNA
Product Quick Detail
- FOB Price
- USD $3,000.00 / Piece
- Minimum Order
- 1
- Place Of Origin
- China (Mainland)
- Packaging
- N/A
- Delivery
- 15 Days
Specifications
General description
Starwin can supply satellite receive only antenna ,and can receive TV signal, Starwin RXO antenna is made of high accuracy stretch-formed aluminum panel with stable structure. The RXO antenna systems with satisfactory performance of high gain, low side lobe and reliable operation, easy to operate and maintenance.
Options
High Accuracy Stretch-formed Aluminum Panel
Meet data receive and TV receive requirement
C-band, ku-bandas option
Linear or Circular Polarized feed system as option
Single/Dual Polarization as option
Manual/Motorized as option
High Erosion Resistance
Assembled and tested feed system before leaving factory
| Electrical Specification | ||
| Type | 3.7m Rx only antenna | |
| Operating Frequency, GHz | C-Band | Ku-band |
| Receive | Receive | |
| 3.4~4.2 | 10.95~12.75 | |
| Gain, Mid-band, dBi | 42 | 50.9 |
| Polarization | linear/Circular | Linear |
| VSWR | 1.3 | 1.3 |
| Isolation | ＞30dB | ＞30dB |
| Feed Interface | CPR -229F | WR-75 |
| Side lobe level | 29-25logθ 1º≤θ≤20º | |
| First side lobe | ≤ -14dB | |
| Mechanical Specification | ||
| Antenna Diameter | 3.7m | |
| Antenna Type | Prime Focus | |
| Surface Accuracy(RMS) | ≤0.5mm | |
| Antenna Pointing Range | Azimuth |
±360°
5°~90°(Continuous)
±90°(Continuous) |
| Elevation | ||
| Polarization | ||
| Drive mode | Manual & motorized |
| Motor drive system | Azimuth Travel Rate | 0.20°/S（0.04°/S） |
| ElevationTravel Rate | 1°/S |
- Country: China (Mainland)
- Business Type: Manufacturer
- Market:Africa,Asia,Europe,Middle East,Americas
- Founded Year:1992
- Address:16TH Floor, Unit 1, Building 3, Garden Plaza, 11# Tang Yan South Road
- Contact:Cathy Liu
