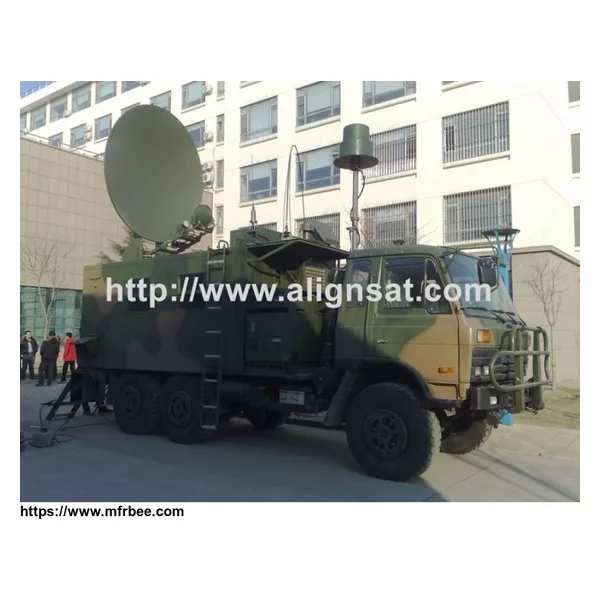

Alignsat 2.4m DSNG Antenna
Product Quick Detail
- Place Of Origin
- China (Mainland)
- FOB Price
- USD $43,000.00 / Piece
- Minimum Order
- 1
- Packaging
- N/A
- Delivery
- 45 Days
Specifications
| Type | AT240 | ||
| Reflector aperture | 2.4m | ||
| Tx frequency | 13.75～14.5 GHz | 5.85～6.725GHz | 5.85～6.425GHz |
| Rx frequency | 10.95～12.75 GHz | 3.4～4.2GHz | 3.625～4.20GHz |
| Tx gain | 48.8+20lg(f/14.25) dBi | 40.6+20lg(f/6.25)dBi | 40.6+20lg(f/6.25)dBi |
| Rx gain | 47.8+20lg(f/12.5) dBi | 36.7+20lg(f/3.8)dBi | 36.7+20lg(f/3.8)dBi |
| Polarization feature | Linear | Linear | Circular |
| Cross polarization (Axis) | ≥35 dB | ≥30 dB |
|
| Rx/Tx isolation | 35/85 dB | ||
| VSWR | 1.5:1 | ||
| Side lobe | -14 dB(Frist side lobe) | ||
| Reflector type | Gregorian | ||
| Weight | 390Kg | ||
| Stowed size | 3280(L)*2470(W)*680(H)mm | ||
| Slewing area | Azimuth | ±220° | |
| Elevation | 5°~90° | ||
| Polarization | ± 95° | ||
|
Rotate speed |
Azimuth | 0.01° /S ～3° /S | |
| Elevation | 0.01° /S ～3° /S | ||
| Pol | 1° /S | ||
| Power supply | DC48 15A, AC110-230V 50/60Hz 6A (optional) | ||
| Work wind load | 72km/h | ||
| Stowed wind load | 225km/h | ||
| Protection grade | IP 65 | ||
| Temperature | -40℃～+55℃ | ||
| Humidity | 0-98% |
