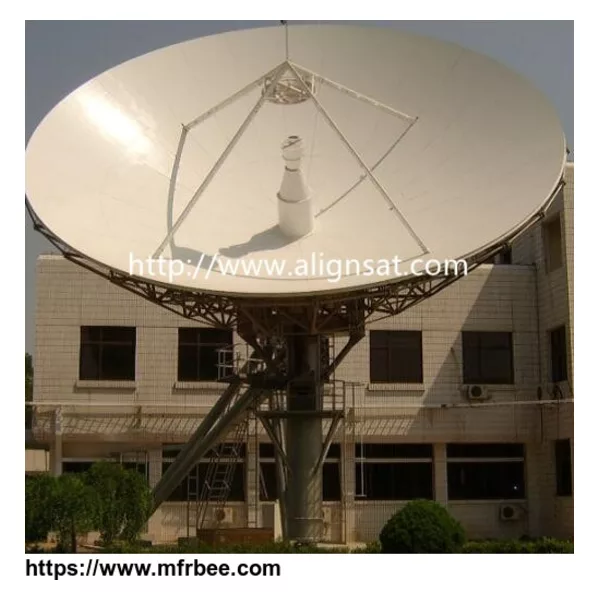

Alignsat 13m Earth Station Antenna
Product Quick Detail
- FOB Price
- USD $150,000.00 / Piece
- Minimum Order
- 1
- Place Of Origin
- China (Mainland)
- Packaging
- Wooden Case
- Delivery
- 90 Days
Specifications
| Type | AT130C | AT130K | ||
| Operating Frequency, GHz | C band | Ku band | ||
| Receive | Transmit | Receive | Transmit | |
| 3.4~4.2 | 5.85~6.425 | 10.95~12.75 | 13.75~14.5 | |
| Gain, Mid-band, dBi | 52.86 | 56.44 | 62.62 | 63.54 |
| Polarization | Linear /circular | Linear | ||
| XPD(on Axis), dB | 35 | 35 | 35 | 35 |
| XPD across 1dB Beam Width, dB | 33 | 33 | 33 | 33 |
| Axial Ratio (Circular-Polarized) 2-PortFeed | 0.5dB per port | |||
| VSWR | CP: 1.25:1, LP:1.3:1 | LP: 1.3:1 | ||
|
Antenna Noise Temperature
10° Elevation 30° Elevation 50° Elevation |
2/4 Port
35K/42K 26K/36K 24K/33K |
|
2/4 Port
60K/66K 50K/56K 46K/52 |
|
| -3 dB Beam Width, Mid-band | 0.30° | 020° | 0.30° | 0.20° |
| Tx. Power Capability, KW |
|
5 |
|
2 |
| Feed Interface | CPR—229F | CPR—159G/13 | WR-75 | WR-75 |
| Feed Insertion Loss, dB | 0.2/0.25 | 0.2/0.25 | 0.25/0.35 | 0.25/0.4 |
|
Isolation, Tx to Rx, dB
Tx/Tx ,Rx /Rx, Linear, dB Tx/Tx, Rx/Rx, Circular, dB |
85 dB
CP:20 dB, LP:30dB CP:20 dB, LP:30dB |
85 dB
LP:30dB LP:30dB |
||
| Radiation Pattern : First Side lobe | ≤-14dB, Meet ITU-RS.580-5 specifications | |||
| Mechanical Specification | ||||
| Antenna Diameter | 13m | |||
| Antenna Type | Cassegrain | |||
| Surface Accuracy(RMS) | ≤0.4mm | |||
| Antenna Pointing Range | Azimuth | ±85°/0°~360°(Continuous) | ||
| Elevation | 0°~90°(Continuous) | |||
| Polarization | 180°(Continuous) | |||
| Drive Mode | Manual or Motorized | |||
| Motor Drive System | Azimuth or Elevation Travel Rate | 0.001°/S-0.3°/S | ||
| Polarization Travel Rate | 1°/S | |||
| Antenna reflector Material | High-diffusing white paint for Aluminum reflector | |||
| Finish of steel parts | Galvanized | |||
| Environmental Specification | ||||
| Operational Wind | 72km/h gusting to 126km/h | |||
| Survival Wind | 200km/h | |||
| Temperature | -40°~+60° | |||
| Relative Humidity | 100% | |||
| Solar Radiation | 1135Kcal/h/m² | |||
| Seismic(Survival) | 0.3g(H), 0.15g(V) | |||
| Ice Loading | 13mm Operational; 30mm Survival |
Note:
1. The real price depends on the detailed parameter you request.
2. When you send us the inquiry, please describe your detailed request, such as exact frequency band for C, ku, ka, X, S or other bands, Linear or Circular Pol., 2 or 4 port, manual or motorized drive. With these detailed information, we can offer you an accurate quotation at an early time. Thanks for your cooperation and understanding.
