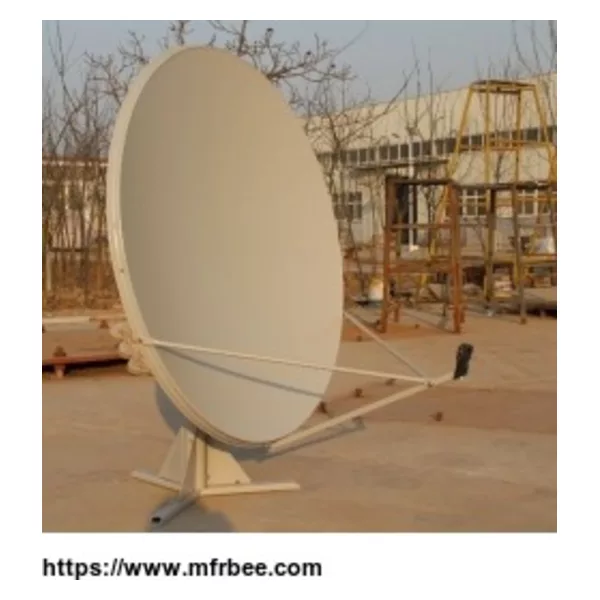

1.2 METER RX ONLY ANTENNA

General description

Alignsat can supply satellite receive only antenna ,and can receive TV signal, Alignsat RXO antenna is made of high accuracy stretch-formed aluminum panel with stable structure. The RXO antenna systems with satisfactory performance of high gain, low side lobe and reliable operation, easy to operate and maintenance.

Options

 High Accuracy Stre tch-formed Aluminum Panel

 Meet data receive and TV receive requirement

 C-band, ku-band as option

 Linear or Circular Polarized feed system as option

 Single/Dual Polarization as option

 Manual/Motorized as option

 High Erosion Resistance

 Assembled and tested feed system before leaving factory

1.2m offset Antenna	Working frequency/Ku band
Antenna Diameter (m)	1.2
Working Frequency Receive	10.95-12.75GHz
Rx Gain(dB)	42.1
Noise Temperature(K)( Elevation20°)	55K
Testing Pattern	First Side lobe(dB)	-14
Side lobe	G(θ)=29-25lgθ
XPD(on Axis)(dB)	≥35
VSWR	≤1.25
Feed Insertion Loss, dB	0.3
Driving mode	Manual
Antenna working range	Azimuth	0°—360°
Elevation	0°—90°
Polarization	±90°
Antenna material	Aluminum panel
Wind speed	20m/s working wind ，36m/s Survival wind， 55m/s Maximum survival wind(Antenna Elevation 90°)
Environmental temperature	-35°C—+55°C
Working life	15years
