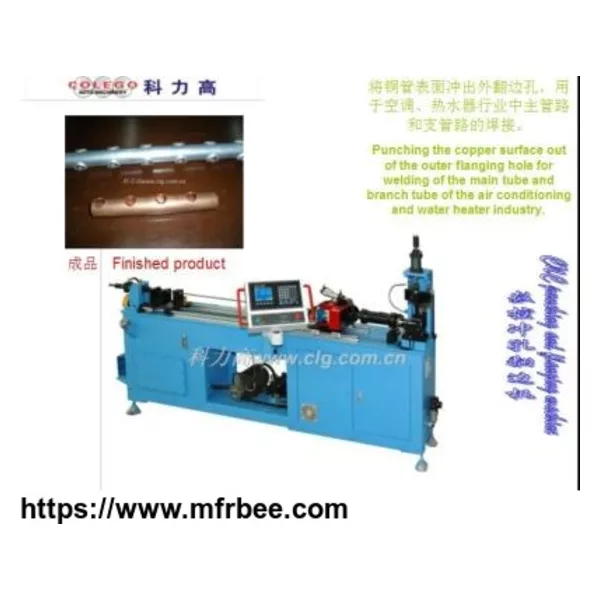

Pipe material
Sofe or semi-hard pipe
Work range
φ12.7—φ40
Max wall thickness
1.2mm
Max hole distance
According to pipe diameter
Min hole distance
35mm
Flanging height
2-3mm
Max work length
2000mm
Max leading screw travel
1000mm
Work efficiency
3sec/hole
Power
4KW
Outside dimension
3000mm*900mm*1600mm
Total weight
1100kg
Notice :specific technical parameters is according to order contract
