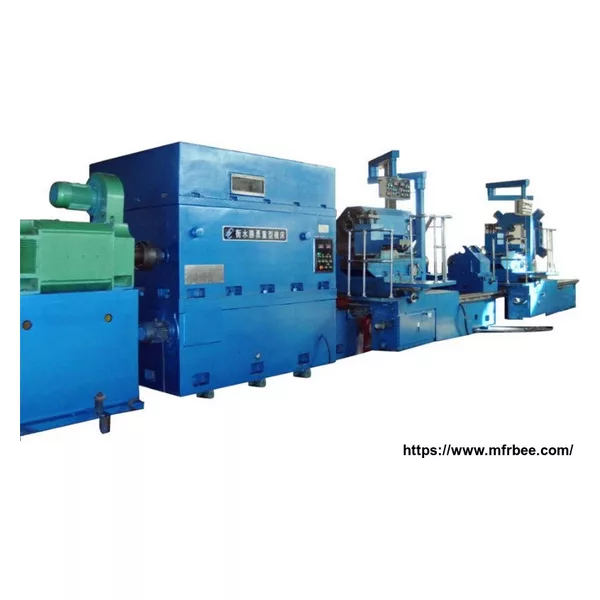

CNC hollow Spindle Lathe CW61145

FOB Price
USD $90,000.00 / Piece
Place Of Origin
China
Minimum Order
1
Packaging
1x40'ft container
Delivery
15 Days
Technical specification of CNC hollow Spindle Lathe CW61145

1 Maximum swivel diameter on the bed 1450 mm

2 Maximum turning diameter over carriage 1100 mm

3 Maximum length of workpiece 80dm

4 Maximum weight between center 18t

5 Diameter of faceplate 1250mm

6 Maximum torque of faceplate 63KN.m

7 Range of spindle speeds 1-200 r/min

8 Maximum cutting force of carriage 60 KN

9 Total cutting force 86 KN

10 Range of feed rates ( long) 0.125-48 mm/min

11 Range of feed rates(Trans ) 0.063-24 mm/min

12 Range of feed rates(longitudinal) 0.031-12 mm/min

13 Rapid speed of of carriage( long) 3000 mm/min

14 Rapid speed of of carriage( Trans) 1500 mm/min
