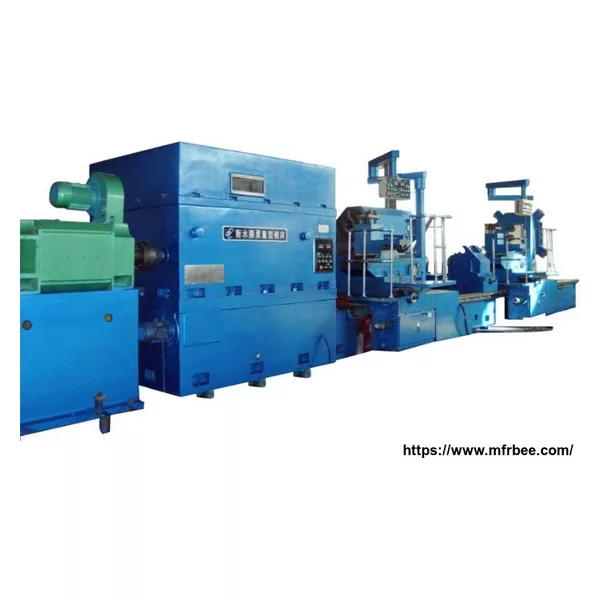

CNC horizontal Lathes CW61125

FOB Price
USD $60,000.00 / Piece
Place Of Origin
China
Minimum Order
1
Packaging
1x40'ft container
Delivery
15 Days
Technical specification of CNC horizontal Lathes CW61125

1 Maximum swivel diameter on the bed 1250 mm
2 Maximum turning diameter over carriage 900 mm
3 Maximum length of workpiece 60dm
4 Maximum weight between center 18t
5 Diameter of faceplate 1250mm
6 Maximum torque of faceplate 63KN.m
7 Range of spindle speeds 1-200r/min
8 Maximum cutting force of carriage 71KN
9 Total cutting force 100KN
10 Range of feed rates ( long) 0.1-40 mm/min
11 Range of feed rates(Trans ) 0.05-20 mm/min
12 Range of feed rates(longitudinal) 0.025-10 mm/min
13 Rapid speed of of carriage( long) 3000 mm/min
14 Rapid speed of of carriage( Trans) 1500 mm/min
15 Range of Processing screw (metric) 1-60 mm
16 Range of Processing screw(imperial system) 6-1/2(t/in)
17 Module (No) 1~6
18 Dimensions of close mode steady supporting Φ300-600 mm
19 Dimensions of open mode steady supporting Φ450-900mm
20 Scale of tool bar section 60×60mm
21 Power of main motor DC:55KW
22 Machine weight(Approx) 26/30/36/39T
23 Overall dimensions(L×W×H) 1138×236×209cm

  • Country: China (Mainland)
  • Business Type:
  • Market:
  • Founded Year:2010
  • Address:No. 01, Shengyong Road, Matou Industrial Zone,Fucheng County, Hengshui City,Hebei Province,China
  • Contact:Abby Shang
more images of CNC horizontal Lathes CW61125
