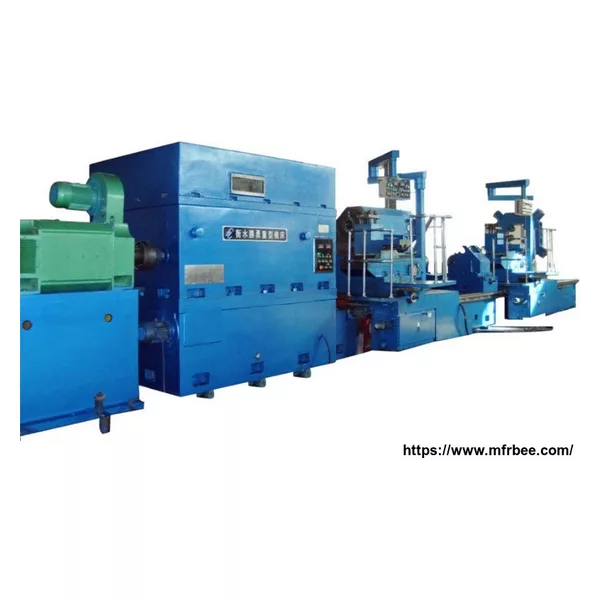

Heavy duty horizontal lathe machine CW61315

FOB Price
USD $90,000.00 / Piece
Place Of Origin
China
Minimum Order
1
Packaging
1x40'ft container
Delivery
15 Days
Technical specification of Heavy duty horizontal lathe machine CW61315


1 Maximum swivel diameter on the bed 3150 mm
2 Maximum turning diameter over carriage 2500 mm
3 Maximum length of workpiece 140 dm
4 Maximum weight between center 80t
5 Diameter of faceplate 2600mm
6 Maximum torque of faceplate 160KN.m
7 Range of spindle speeds 0.5-100 r/min
8 Maximum cutting force of carriage 90 KN
9 Total cutting force 160 KN
10 Range of feed rates ( long) 0.265-500 mm/min
11 Range of feed rates(Trans ) 0.106-200 mm/min
12 Range of feed rates(longitudinal) 0.053-100 mm/min
13 Rapid speed of of carriage( long) 3000 mm/min
14 Rapid speed of of carriage( Trans) 1200 mm/min
15 Scale of tool bar section 100×100mm
16 Power of main motor DC:125KW
17 Machine weight(Approx) 138 T
18 Overall dimensions(L×W×H) 2328×894×407cm
  • Country: China (Mainland)
  • Business Type:
  • Market:
  • Founded Year:2010
  • Address:No. 01, Shengyong Road, Matou Industrial Zone,Fucheng County, Hengshui City,Hebei Province,China
  • Contact:Abby Shang
