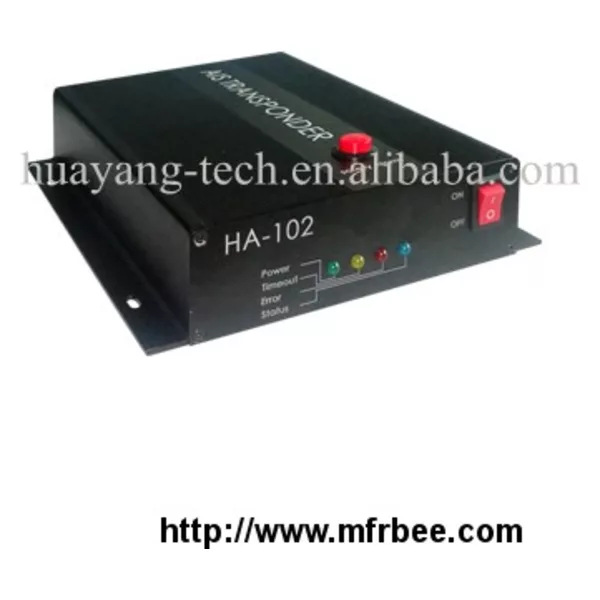

Matsutec HA-102 CLASS B AIS TRANSPONDER

Matsutec HA-102 CLASS B AIS TRANSPONDER

Features

1. Electrical function is accordance with IEC 62297-1

2. Dual Channel function: Two TDMA receivers are receiving datum in two independent channels at the same time, and one TDMA transmitter is transmitting in two independent channels alternately.

3. CSTDMA function can avoid and solve communication conflict.

4. Transponder has external serial data interface (RS-422, RS-232).

5. Transmit and receive safety message, and equipped with “SOS” safety button.

6. Support three operation mode: Carrier-sense mode, assigned mode and polled mode.

7. Internal GPS receiver, as data source for position, COG and SOG can be connected to all devices compatible to GPS and PC, PDA, ECDIS, RADAR, etc.

8. Support DSC reception based on TDMA channel.

9. Alarm and indication (via LED) for power, error, time-out, status.

Specification

STANDARDS

IEC 62297-1

IEC 61162-1

IEC 60945-2002

VHF RECEIVER

Frequency Range 156.025 MHz - 162.025 MHz

Channel Bandwidth 25 KHz

Number of AIS Receivers 2 Receiver (one time share

between AIS / DSC) 1 Transmitter

CH-1 default CH 87B (161.975 MHz)

CH-2 default CH 88B (162.025 MHz)

Number of DSC Receiver 1 (CH 70)

RX DSC 156.525 MHz

Max. Usable Sensitivity PER ≤ 20% at -107dBm

VHF TRANSMITTER

Power Output 2 Watt (33dBm ±1.5 dB)

Modulation GMSK / FM

Data Rate 9600 bps / per channel

Modulation Spectrum IEC 62287

DSC RECEIVER

Modulation 1300 Hz / 2100 Hz FSK

Data Rata 1200 bps ± 30 ppm

Spurious Response Rejection ≥ 70 dB for signal@-104 dBm; BER≤1%

Blocking ≥ 70 dB for signal@-104 dBm; BER≤1%

GPS RECEIVER

Receiving Channels 12 Channels

Acquisition Sensitivity -140 dBm

Tracking Sensitivity -150 dBm

Position Accuracy < 2.5m CEP (GPS) without SA

Output Rate 1 Hz

POWER

Supply Voltage 12V DC (10V - 20V)

Power Consumption Less than 10W

MAIN UNIT

4 LED Indicator Working Status

1 ON/OFF Switcher

INTERFACE

Ports NMEA 0183 / RS-422 / RS-232

GPS Antenna (Optional) Female TNC Connector

VHF Antenna (Optional) Female Type M Connector

ENVIRONMENT

Operating Temperature Antenna: -25 C - 70 C

Others: -15 C - 55 C

Storage Temperature -25 C - 70 C

Humidity Operating: 0 - 95 RH at 40 C

GPS Antenna Operating: 100% sealed

VHF Antenna Operating: 100% sealed

Vibration IEC 60945

Waterproof IPX 5

PHYSICAL

Size in mm (W) 234 mm

Size in mm (H) 40 mm

Size in mm (D) 167 mm

Weight ＜ 1 kg
