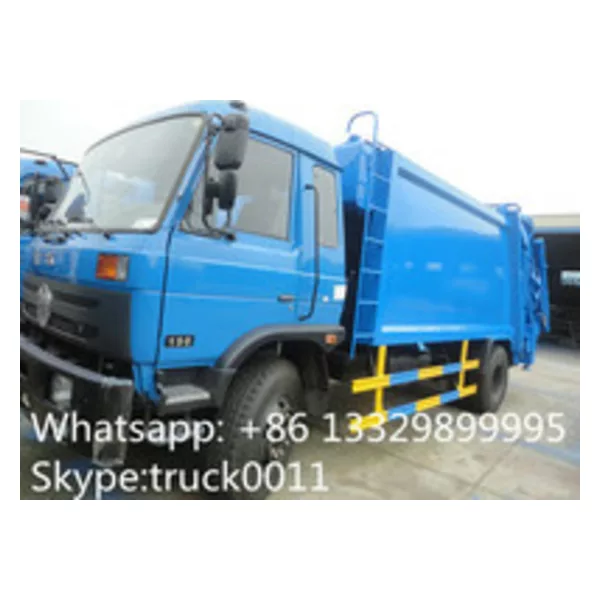

Dongfeng 153 garbage compactor truck adopts dongfeng EQ5140KLG chassis. And the truck model is CLW5160ZYS3,
adopts rear loading garbage compacting, with the compacting volume of 13.5cbm, the common refuse garbage trucks for sale.
More information, please feel free to contact with Ms. Anita Deng.
Website: www.truckdf.com
Skype:truck0011
Whatsapp: +86 13329899995
Wechat: 504873236
The main parameters of hot sale dongfeng 153 garbage trucks as below
Truck model | CLW5160ZYS3 |
Product name | 153 garbage compactor truck |
Wheelbase(mm) | 4500 |
Overall dimension(L*W*H)(mm) | 8520*2490*3350 |
Chassis model | EQ5140KLJ |
Curb mass(kg) | 8795kg |
Rated mass(kg) | 5500kg |
Total mass (kg) | 14490kg |
Upper parts main part parameters | ||
Working condition | Main parameters | Remark |
Van Part dimension | 4330*2400*1850 | Common 13.5cbm |
Van part material | Side sheet 4mm, bottom sheet 5mm | common |
Drain tanker | 200L | |
Filter volume | 1.2cbm | |
Filling time | 8-10s | |
Filling circling time | 50-60s/time | |
Discharging way | Flat push type self-discharging, | |
Discharging time | 30-40s | |
Hydraulic system pressure | 16MPa | |
Control way | Electric control with manual control | |
reduction ratio | 1: 0.6-0.8 |
Hydraulic pump | 563 | 1 |
Multi-way valves | DL-15B-6 | 1 |
Tilting plate oil cylinder | 80/45-410*180 | 2 |
Negative pressure oil cylinder | 80/45-390*470 | 2 |
Lift cylinder | 80/45-900*660 | 2 |
Shave cylinder | 80/45-655*445 | 2 |
Sliding board cylinder | 100/45-1375*1100 | 2 |
Push pedal cylinder | YSTB-1150*2170-(Ⅲ) | 1 |
Integrated air valve | 1 | |
Electromagnetic valve | UZCT-115/24V | 2 |
Limit switch | JXL19-111 | 2 |
