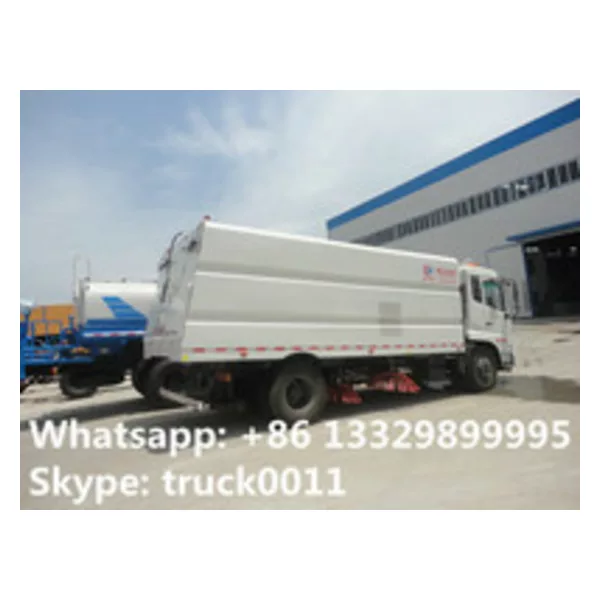

DongFeng 6-8T road sweeper truck
Product Quick Detail
- Place Of Origin
- China
- Minimum Order
- 1
- Packaging
- in bulk package
- Delivery
- 15 Days
Specifications
DongFeng 6-8T road sweeper truck
1 High operation efficiency
2 Advanced technology
3 high practicability
4 1year warranty
More information, please feel free to contact with Ms. Anita Deng.
Website: www.truckdf.com
Skype: truck0011
Whatsapp: +86 13329899995
| DongFeng 6-8T road sweeper truck | |||
| ITEM | PARAMETER | UNIT | DATA |
| Whole Vehicle | Vehicle Model | CLW5160TSL4 | |
| Overall Dimensions | mm | 8000*2470*3160 | |
| GVW | kg | 16000 approximate | |
| Curb Weight | 9805 approximate | ||
| Rated Load | 6000 approximate | ||
| Max Speed | km/h | 90 | |
| F/R track base | mm | 1880/1860 | |
| Front/Rear Hanging | 1430/2070 | ||
| Approach/Departure Angle | ° | 20/15 | |
| Leaf Spring | pcs | 8/10+8,7/9+6 | |
| Drive Wheel | 4*2 | ||
| Chassis Model | DFL1160BX4 | ||
| Wheel Base | mm | 4200 | |
| Tire Specification | inch | 10.00-20,9.00-20 | |
| Engine | No. of Tires | pcs | 6+1 spare |
| Engine Type | EQH180-40 | ||
| Engine Horsepower | hp | 180 | |
| Displacement | ml | 4752 | |
| Gearbox | Emission Standrad | Euro4 | |
| Cab | Row | single | |
| Passenger | 3 | ||
| Gearbox | No. of Gears | Manual | 6-speed with overdrive |
| Sweeper | Sweeping width | mm | 3000 |
| Sweeping speed | km/h | 3 to 20 | |
| Sweeping capacity | sq.m/h | 9000-60000 | |
| Sweeping efficiency | 98% | ||
| Max inhale granularity | mm | 120 | |
| Suction nozzle mini ground clearance | 200 | ||
| Grain unloading angle | ° | 45 | |
| Grain unloading height | mm | 970 | |
| Protector | Material | Q235A carbon steel | |
| Section Dimension | mm | 120*50 | |
| Ground Clearance | mm |
500
|
