Chengli Special Automobile Co., Ltd. is the leading manufacturer and supplier of truck with crane, truck mounted crane, truck crane, mobile crane truck, telescopic boom mounted on truck, etc. in China since 2004s. With many years'experience in manufacturing, Chengli Special Automobile Co., Ltd. could offer 2ton-18ton truck with crane, 20ton-160ton heavy duty truck mounted crane, etc. More information, please feel free to contact with Ms. Anita Deng.
Website: www.truckdf.com
Skype: truck0011
Whatsapp: +86 13329899995
Wechat: 504873236

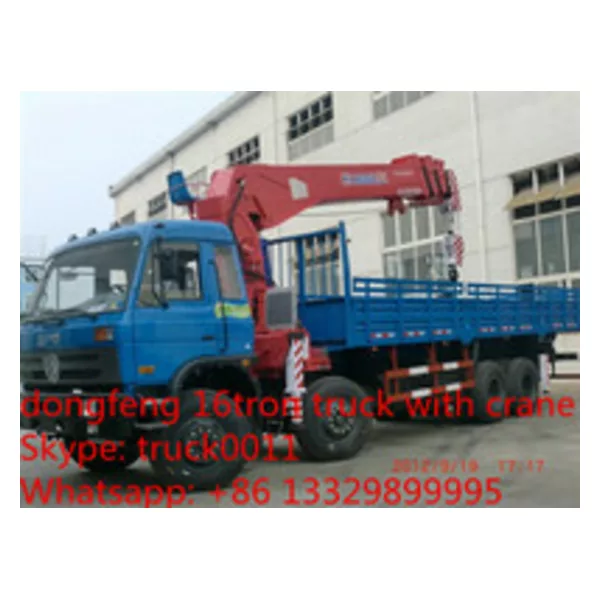

Product Name | Dongfeng Truck with Crane | |
Chassis Model | EQ5258JSQF | |
Fuel type | Diesel | |
Cabin | Dongfeng153 Half row | |
Whole Vehicle main dimensions (mm) | Overall dimensions (L×W×H) | 11900*2490*3800 |
Cargo body dimensions | 8200*2294*550 | |
Wheel base | 5850+1300 | |
Front overhang | 1250 | |
Rear overhang | 3300 | |
Min. ground clearance | 510 | |
Weight data (kg) | G.V.W | 24900 |
Curb weight (chassis) | 14400 | |
Max payload | 10000-20000 | |
Whole vehicle main performance |
Max. speed (km/h) | 90 |
Max. slope of climb (%) | 30 | |
Engine | Model | B210 33 |
Maximum power | 155kw/210hp | |
Number of cylinders | 8 | |
Displacement (L) | 5900 | |
Engine Manufacturer | Dongfeng cummins Engine Co., Ltd. | |
Number of gears | FAST 8 forward gears & 1 reverse | |
Axle | Front Load capacity (ton) | 5 |
Rear Load capacity (ton) | 10 | |
Suspension | Front | 10- Leaf spring |
Rear | 13+8-leaf spring | |
Steering Wheel | left/right hand drive | LHD |
Brake system | Service brake | Air braking |
Parking brake | Drum brake system | |
Electric device | Rated voltage | 24V |
Tyres & Quantity | 10.00-20 & 10+1 | |
Crane Description | ||
Brand | XCMG | |
Type | Straight Crane | |
Model | SQ10ZK3Q | |
Max Lifting Capacity (kg) | 10000 | |
Max Lifting Moment (t.m) | 20 | |
Recommend Power (kw) | 28 | |
Max Oil Flow of Hydraulic System (L/min) | 40 | |
Max Pressure of Hydraulic System (MPa) | 28 | |
Oil Tank Capacity (L) | 160 | |
Rotation Angle (°) | All Rotation | |
Crane Weight (kg) | 3477 | |
Installation Space (mm) | 1150 | |
Working radius (m) | 2/4.17/5.99/7.87/9.75 | |
Lifting capacity (kg) | 10000/4600/3050/2280/1700 |
