Hydraulic Ironworker

Place Of Origin
china
FOB Price
USD $7,000.00 / Piece
Minimum Order
1
Packaging
N/A
Delivery
15 Days

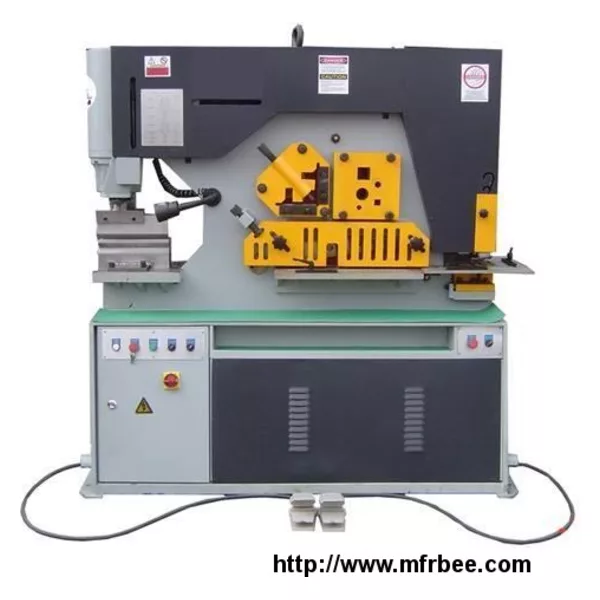

Q35Y series hydraulic ironworkers adopt hydraulic driving system. Adopted high technology, the Hydraulic Conbined Punching & Shearing Machine with Notch series mainly have Q35Y-16, Q35Y-20, Q35Y-25, Q35Y-30 etc.Max.cutting thickness(mm) of 16, 20, 25, 30 are available! They are the latest ironworkers in our country. Various metal plates, square bar, angle steel, channel steel and joist steel can be cut, punched and notched on the machines.

Technical parameter:

type Q35Y-20
punching pressure(ton) 90
max.shearing thickness of steel plates(mm) 20
strength of steel plates(N/mm2) 450
angle of shear 8°
shearing sizes of one stroke (W×H)(mm) 10×480
20×330
ram stroke(mm) 80
number of stroke(times/min) 8
depth of throat(mm) 355
punching thickness(mm) 20
max.diameter of punching(mm) 30
main motor power(KW) 5.5
overall dimensionsL×W×H)mm 1860×800×1900
N.W(kg) 2000
