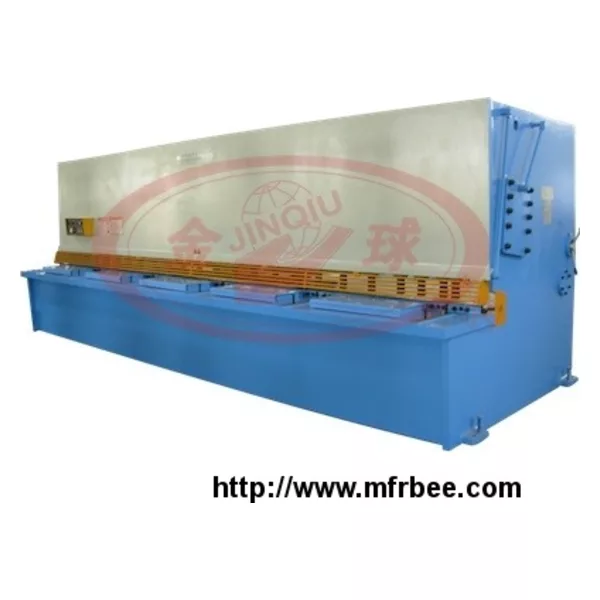

Hydraulic shearing machine

TECHNICAL FEATURES

• Welded all-steel frame providing maximum rigidity and cutting accuracy
• Swinging top beam working on high precision and self-aligning roller bearings
• Rapid blade gap adjustment mechanism
• Swing-up backgauge system for shearing longer pieces than maximum backgauge range
• Compact, low-maintenance hydraulic unit located above oil tank
• Hydraulic holddown system
• Hydraulic overload protection
• Fine adjustment of blades from lower beam
• Adjustable stroke length to increase number of strokes on shorter cuts

• Shear blades made from tough and wear-resistant alloyed material Top blade : two cutting edges Bottom blade : four cutting edges
• Backgauge mechanic readout control
• Foot pedal control for single and repetitive cutting cycles
• squaring arm with scale, T-slot and flip-stop
• Work table with ball transfers and hand slots
• Emergency stop buttons
• Shadow line facility with fluorescent lighting
• front finger guard , rear guard and side throat guards

1

Type

Hydraulic swing beam type

2

Cutting length

2500 mm

3

Cutting thickness

6 mm (mild steel at 450 Mpa)

4

Shear angle

1.5°

5

Number of stroke per minute

18

6

Stroke back gauge

20-600mm

7

Hold down cylinders

13

8

Main motor

7.5kw

9

Main Electric Elements in cabinet

Schneider

10

Oil tank volume

247 L

11

Gross weight

5400 kg

12

Overall size(mm) LxWxH

3340x1810x1950

13

Packing:

With plastic covers

Transportation:1/3x40’ GP
