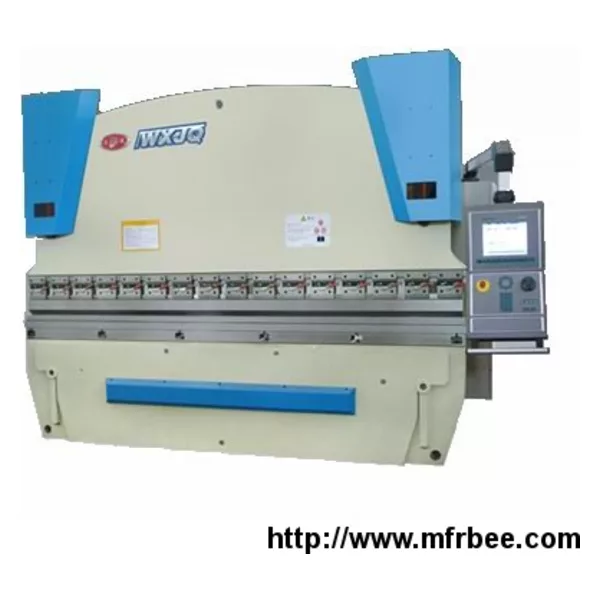

CNC hydraulic press brake

TECHNICAL FEATURES

• European CNC with complete bending computations and tool library
• Ideal for multi-bending of complex forms, as well as for volume production which require constant repeatability
• Bend accuracy and repeatability much higher than a conventional press brake
• Fully synchronised Y1-Y2 axes to ± 0.01mm via proportional valves and precision linear scales
• Very fast AC servo backgauge (X) system controlled by CNC
• High stroke and daylight values
• Two front arms with front gauge, can slid on T slot
• Side and rear safety gates (electrically interlocked and/or light or laser guarded)
• Compactly-wired PLC electrics in ventilated cabinet
• Ram travel fully supported in low friction slideways

• Automatic working table crowning system controled by CNC
• European hydraulic system

• Oil tank level / temperature indicator

1

Type

Hydraulic CNC electro-hydraulic synchro

2

Working force

80 T

3

Length of table (A)

2500 mm

4

distance between frames (B)

2050 mm

5

Open height (D)

460 mm

6

throat depth (E)

250 mm

7

Table height (F)

800mm

8

Table width (G)

200mm

9

Stroke

200mm

10

speed

Approach

110mm/s

Working

9mm/s

Return

115mm/s

11

Main motor

7.5kw

12

CNC system

Type: DA52

Delem Co., Netherlands

3 Axis(Y1,Y2,X)

+Automatic hydraulic compensation system

13

Tool

With 1 punching and 1 bottom die

14

Main Electric Elements in cabinet

Schneider

15

Seal in the cylinders

NOK or SKF

16

Oil tan volume

300L

17

Gross weight

6500 kg

15

Packing size(mm) LxWxH

2900x2100x2550
