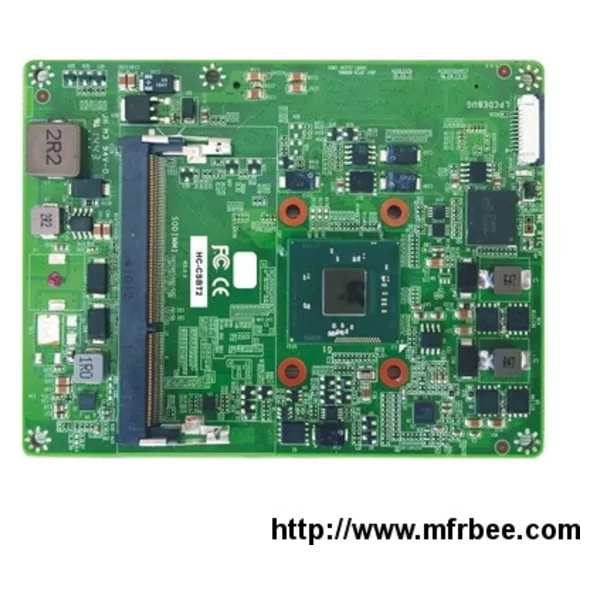

HC-CSBT2 ,COM Express motherboard

Minimum Order
1
Place Of Origin
China
Packaging
N/A
Delivery
15 Days
Size Length*Width Size:125mm*95mm
Chipset Intel Bay-trail J1800
EMMC Micron, 8bit 16G
DDR3 Memory 1*SODIMM Single channel DDR3
COM Express
Internal IO connectors
PCI-E 4pcs
VGA 1pcs
HDMI 1 pcs
USB2.0 3pcs
USB3.0 1pcs
LAN Intel 211
HDA Yes
COM 4pcs
GPIO 4pcs input, 4 output
SATA 2pcs,一pcsSATA3.0,一pcsSATA2.0
LPC Yes
I2C Yes
POWER 12V input
Work hours 100 hours without hang and problmes
Environment -10~+80°C;10%~90% Relative humidity
  • Country: China (Mainland)
  • Business Type: Trading Company
  • Market:the whole world
  • Founded Year:2015
  • Address:MJH XiYueLi,Central City Road,Longgang District
  • Contact:Jessica Huang
